All of the Tig torches from the JA-9 series are gas-cooled, silicone-isolated,
resilient to 140 Amp. by 40% ED
| Order-nr. | Type | Length | Gas-cooled | Water- cooled | Flexible | Connection thread | *smallest construction height |
|---|---|---|---|---|---|---|---|
| N0900300I | JA 9 | 45 mm | X | Inner 3/8“-24 G UNF | ca. 38 mm | ||
| N0900300A | JA 9 | 45 mm | X | Outer G 1/8“ | ca. 38 mm | ||
| N0900100I | JA 9 F | 80 mm | X | X | Inner 3/8“-24 G UNF | ca. 38 mm | |
| N0900100A | JA 9 F | 65 mm | X | X | Outer G 1/8“ | ca. 38 mm | |
| N0900200I | JA 9 FL | 105 mm | X | X | Inner 3/8“-24 G UNF | ca. 38 mm | |
| N0900200A | JA 9 FL | 105 mm | X | X | Outer G 1/8“ | ca. 38 mm | |
| N0900400I | JA 9 V | 65 mm | X | Inner 3/8“-24 G UNF | ca. 38 mm | ||
| N0900400A | JA 9 V | 65 mm | X | Outer G 1/8“ | ca. 38 mm |
V = Valve Tig torch
*The smallest construction height is depending on the equipping !

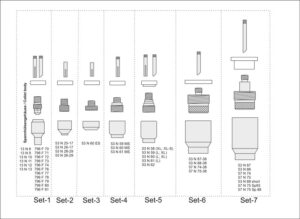

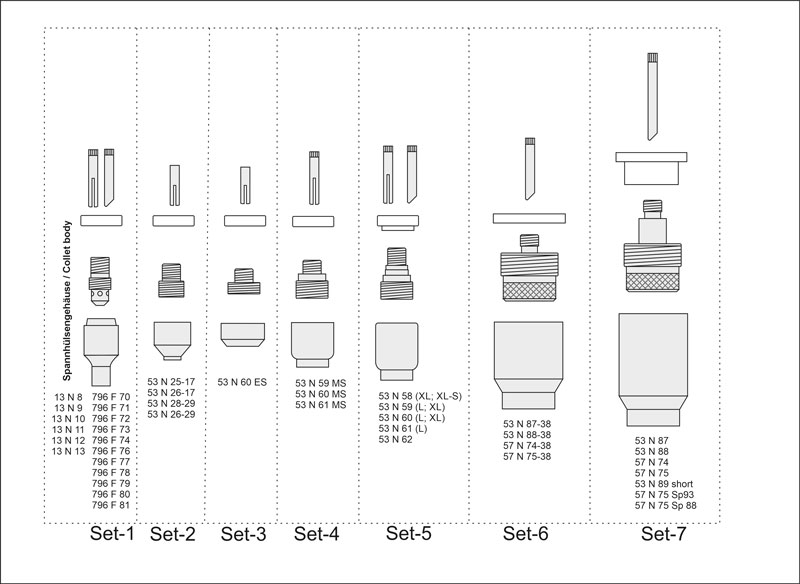

| Set-1 | |
|---|---|
| Order-Nr. | Item |
| N09070xx | Collet body |
| N0905000 | Insulator |
| N09060xx | Collet 25 mm long |
| Set-2 | |
|---|---|
| Order-Nr. | Item |
| N09071xx | Gas lens |
| N0905100 | Insulator |
| N09061xx | Collet 17,5 mm long |
| *Set-3 | |
|---|---|
| Order-Nr. | Item |
| N09072xx | Gas lens |
| N0905100 | Insulator |
| N09062xx | Collet 16 mm long |
| Set-4 | |
|---|---|
| Order-Nr. | Item |
| N09073xx | Gas lens |
| N0905100 | Insulator |
| N09063xx | Collet 23 mm long |
| *Set-5 | |
|---|---|
| Order-Nr. | Item |
| N09074xx | Gas lens |
| N0905000 | Insulator |
| N09060xx | Collet 25 mm long |
| Set-6 | |
|---|---|
| Order-Nr. | Item |
| N09075xx | Gas lens Titanium |
| N0905300 | Insulator |
| N09064xx | Collet 27 mm long |
| Set-7 | |
|---|---|
| Order-Nr. | Item |
| N09076xx | Gas lens Titanium |
| N0905200 | Insulator |
| N09065xx | Collet 38 mm long |
The “XX” marked order numbers must be replaced with the desired bore diameter, please see after the corresponding lists!

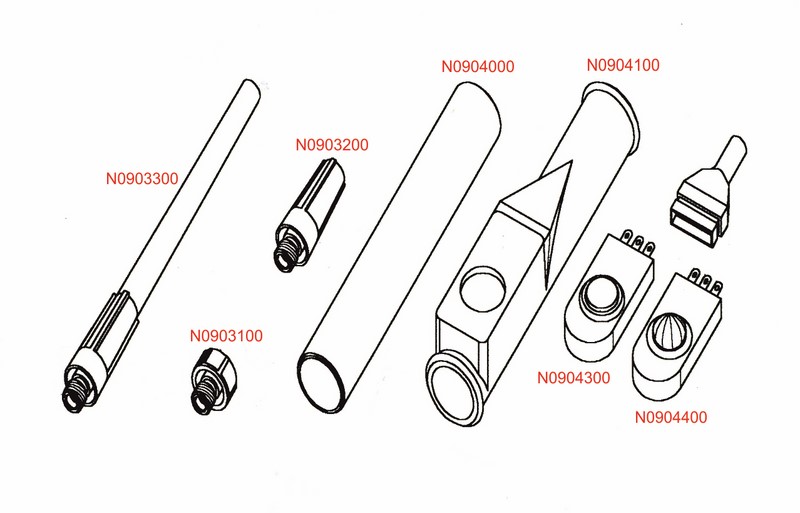

| Accessories | |
|---|---|
| Order-Nr. | Item |
| 41V24 | Tig torch cap short |
| 41V35 | Tig torch cap middle |
| 41V33 | Tig torch cap long |
| N0904000 | Handhold, flat |
| N0904100 | Switch socket |
| J0500001 | JA-Grip plate compl. (small) |
| N0904300 | Simple pressure switch, flat |
| N0904400 | Simple pressure switch, round |
