Monitor Your Critical Welds from a Desk-Mounted Model
 Precision and Control | Advanced Integration | Ease of Use |
Advanced Technology and Integration
• PurgeNet™ Enabled:
Connects with automatic welding systems and accessories such as visual indicators, dew point meters, and temperature monitors for comprehensive control and monitoring
• PurgeLog™ Software:
ncludes software for computer interfacing, data acquisition, storage, and printing of results and graphs for Quality Management Control purposes.
• Integral Pump:
This pump ensures a regular flow of exhaust weld purge gas to the sensor, ensuring consistent measurements and readings.
High Performance and Reliability
• Long Life Sensor: Features a unique, fast response, long-life sensor with minimal maintenance requirements.

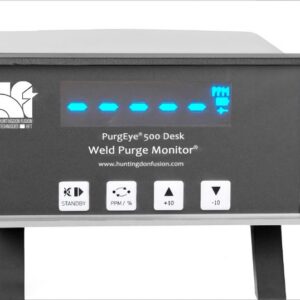

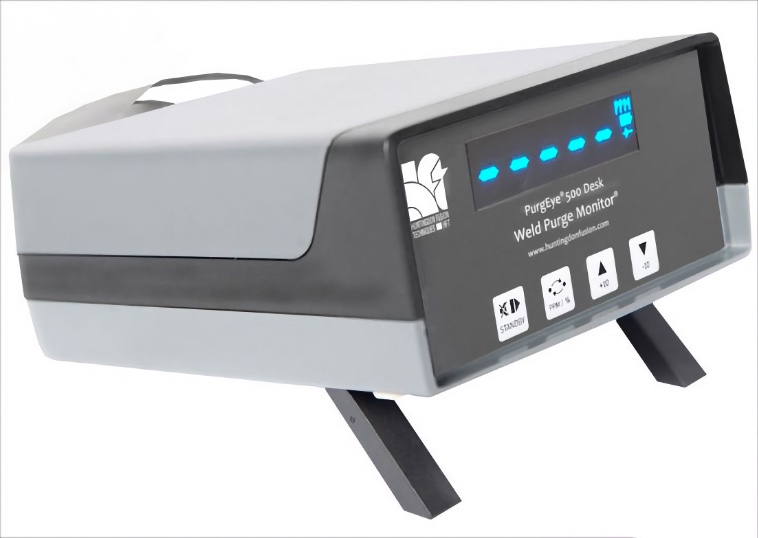

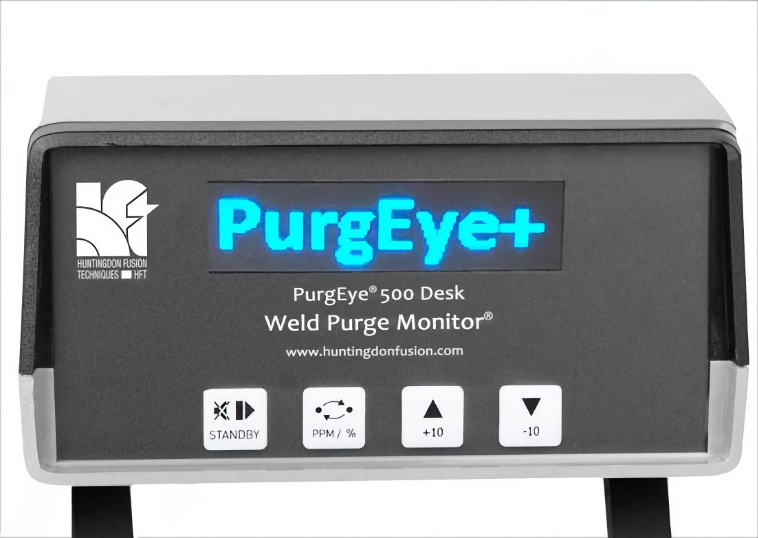

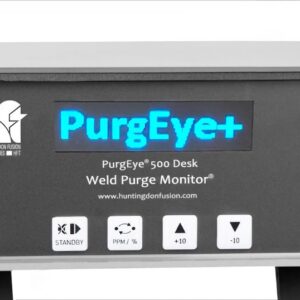

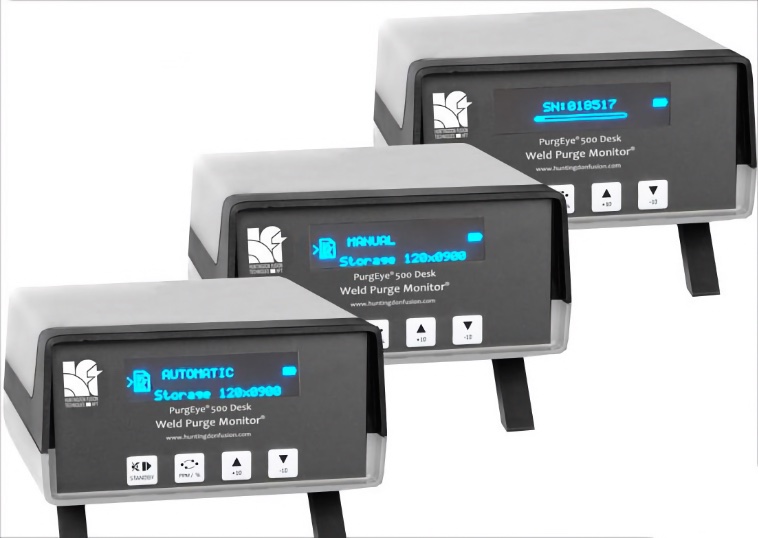

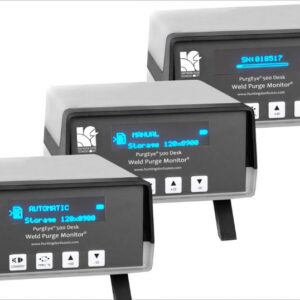

• OLED Display: Provides sharper, brighter, and clearer readings for easy viewing at longer distances.
• Auto Power-Off: Automatically turns off after 15 minutes of over-range reading to conserve power.
User-Friendly Design

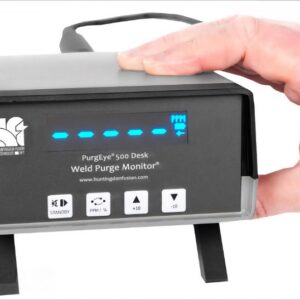

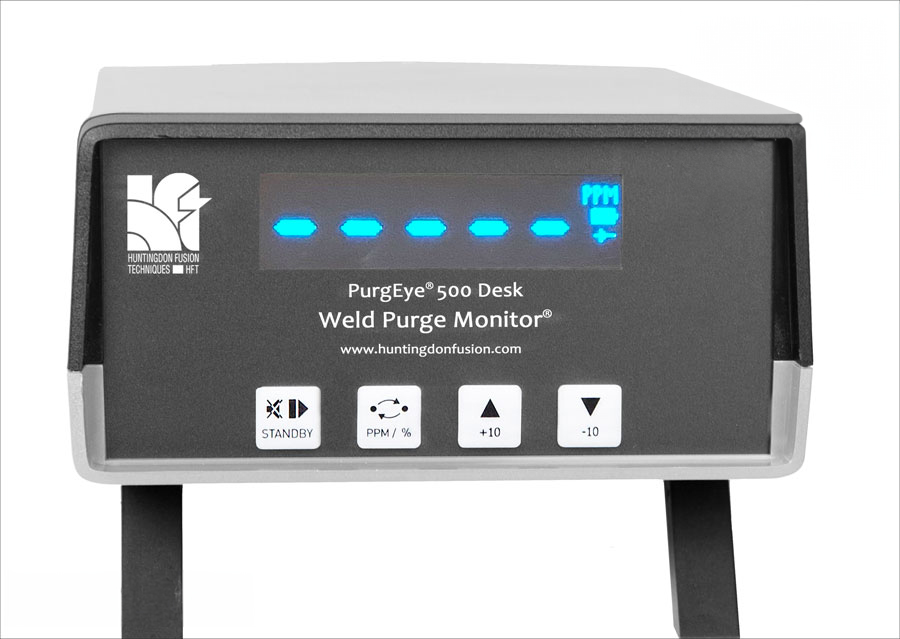

• Menu-Driven Interface: Simple operation using four buttons on the front panel.

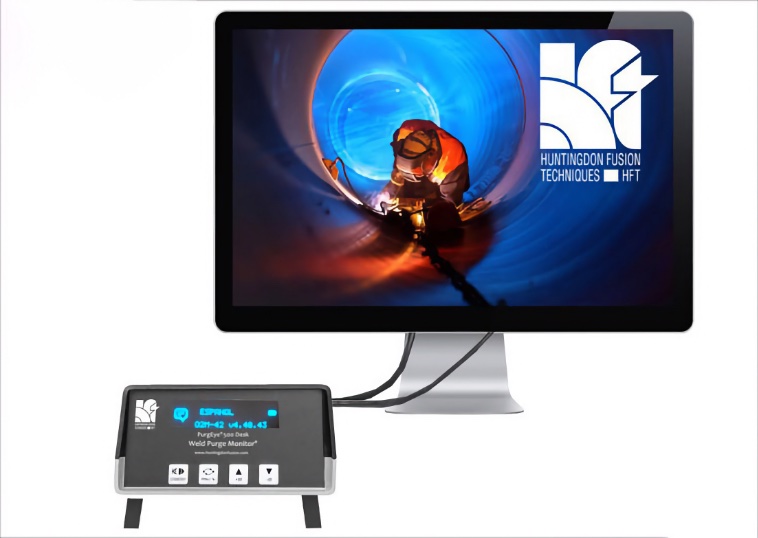

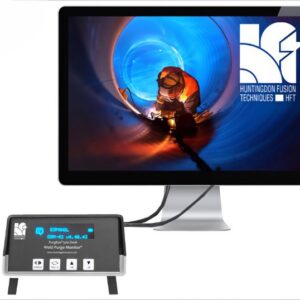

• RS232 Serial Port: For connection to a PC, enabling data logging and integration with PurgeLog™ software.

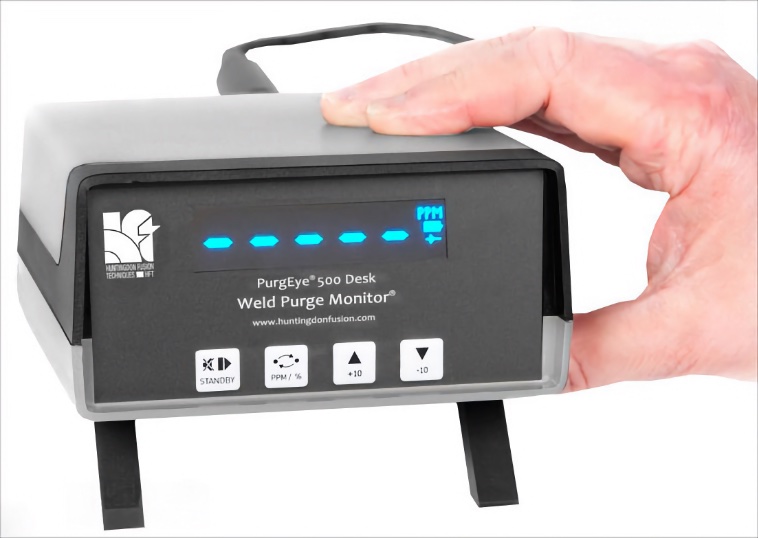

• Compact and Portable: Lightweight and small, making it easy to use in various welding environments.
| Technical Specifications | |
|---|---|
| Measuring Range: | 1,000 ppm down to 10 ppm |
| Accuracy: | ±2.0% of scale reading |
| Size: | 145 x 190 x 70 mm |
| Power Consumption: | 18 W |
| Operating Voltage: | AC 115/230 V single phase 50/60 Hz |
| Weight: | 2.2 kg |
| Pump Flow Rate: | 3.5 - 4 litre/min |
| Warm-Up Time: | Less than 60 seconds |
| Ordering | |
|---|---|

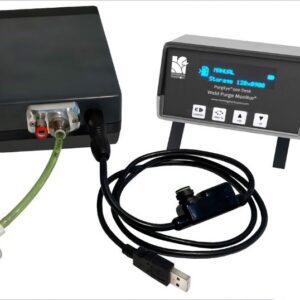

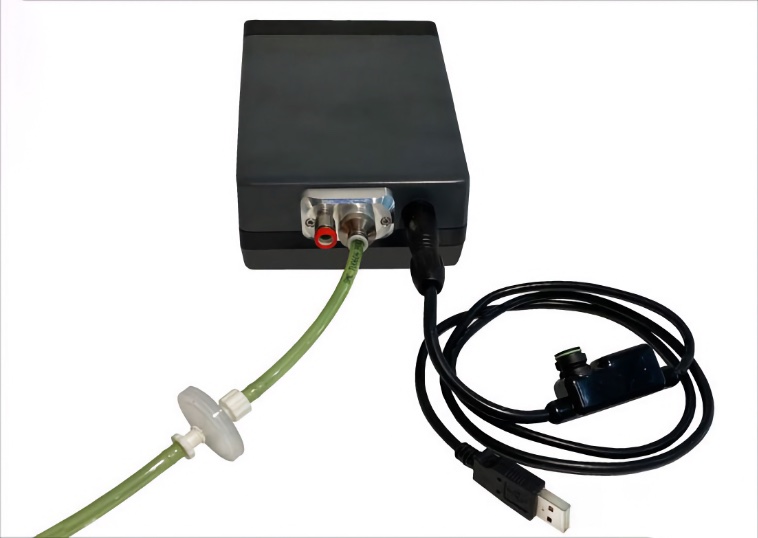

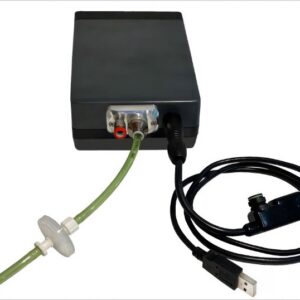

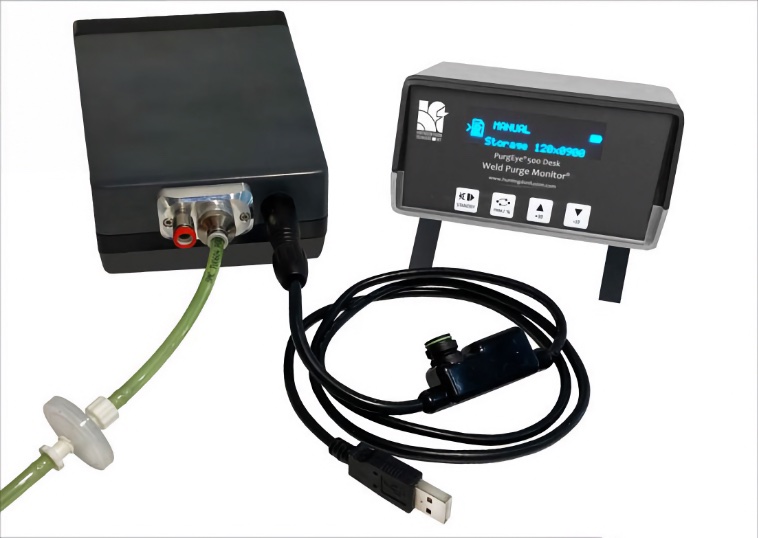

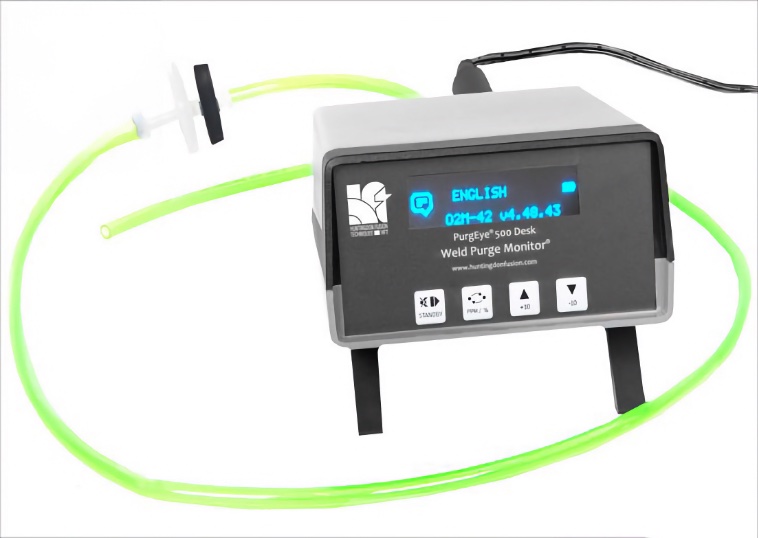

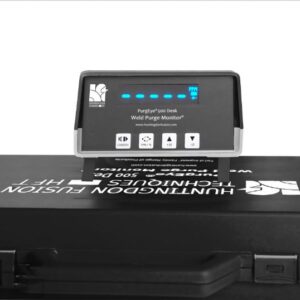

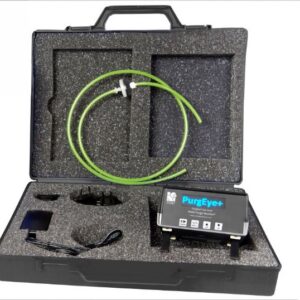

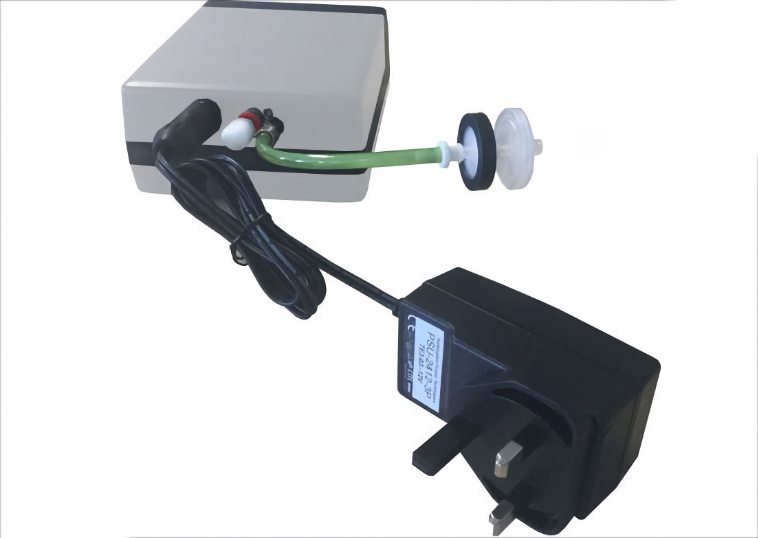

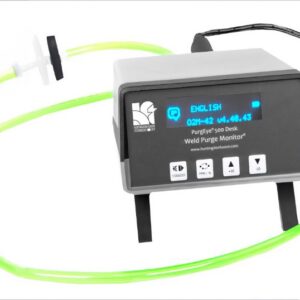

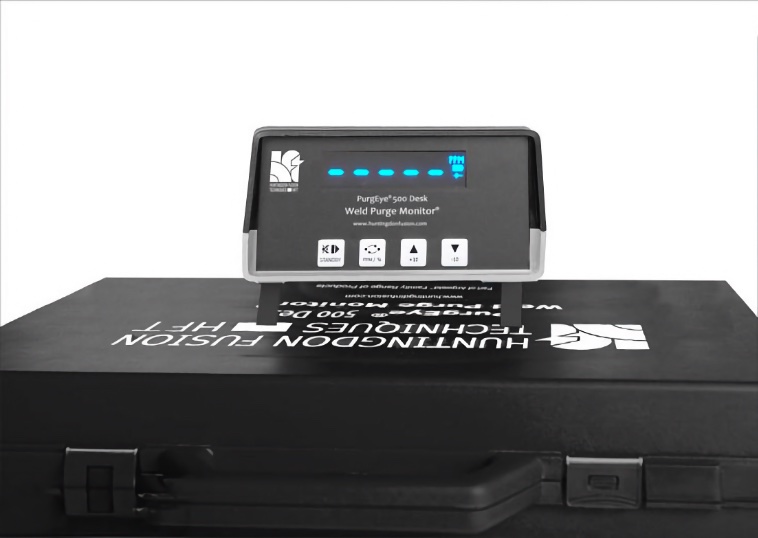

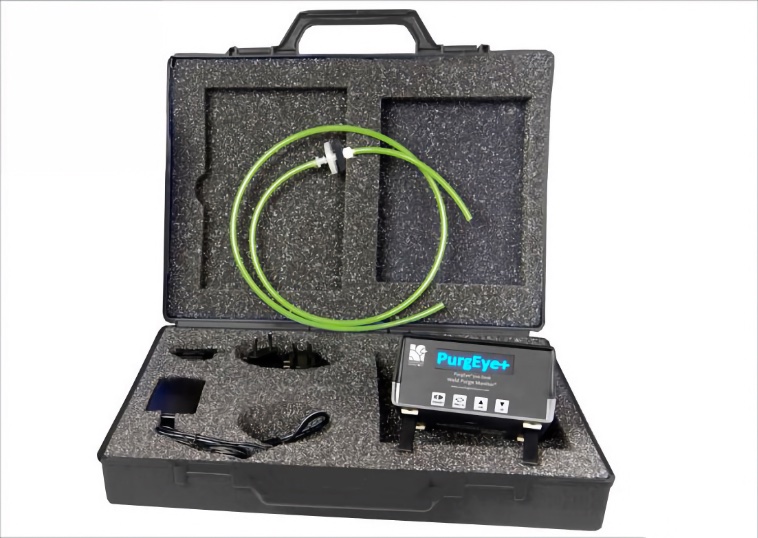

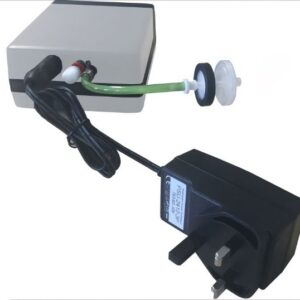

| Supplied With: | External 12 V Power Supply Unit (including multiple international mains adaptor connections) Input purge gas sample tube (green, 1 meter) with filter Interface data connection cable User instruction technical manual Storage and presentation case Calibration certificate for Quality Control Procedures and Management Systems |
| Accessories,Spares, and Replacements: | Dew Point Sensor Visual on/off light for remote viewing Temperature monitor for interpass temperature control |
| Dew Point Sensor: | HFT®’s Dew Point Sensor can be connected to the PurgEye® 500 Desk via PurgeNet™ for accurate dew point measurement, essential for maintaining weld integrity. This sensor is compatible with all PurgEye® monitors reading down to 1 ppm, including: PurgEye® 200 PurgEye® Desk PurgEye® 600 PurgEye® 1000 PurgEye® Site |
