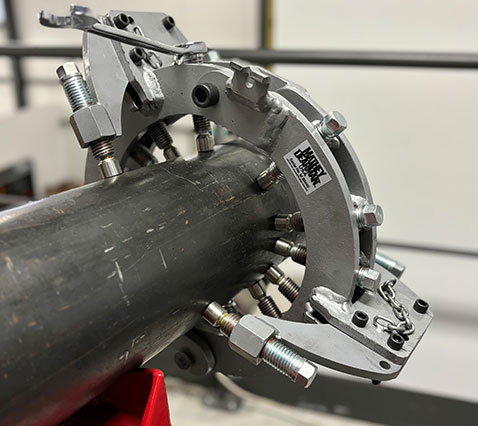

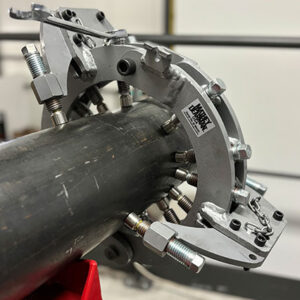

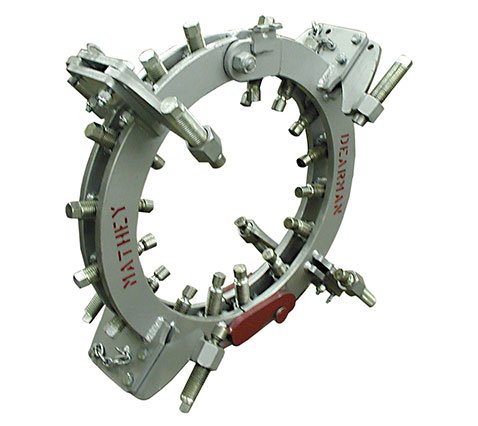

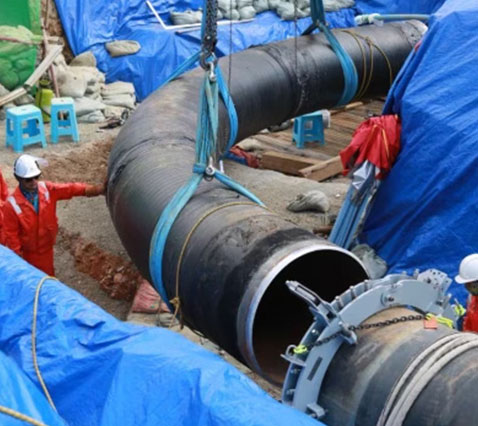

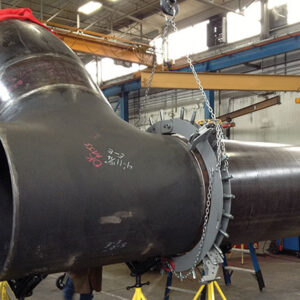

The Mathey Dearman Rim Clamp is built for tough reforming jobs and is ideal for applications requiring 100% weld and grind without releasing clamping pressure.
Symmetrically placed jackscrews apply pressure on high points to precisely reform and align pipe or shells. All surfaces of the Rim Clamp in contact with the pipe are made of stainless steel enabling the clamp to be used on a variety of materials.
The Mathey Dearman Rim Clamp will reform 45,000 PSI tensile strength pipe up to schedule 80, with out-of-round conditions up to 2″ / 51 mm, depending on wall thickness.
Accurate: Apply reforming pressure exactly where required
Strong: Corrects out-of-round conditions up to 2″ / 51 mm

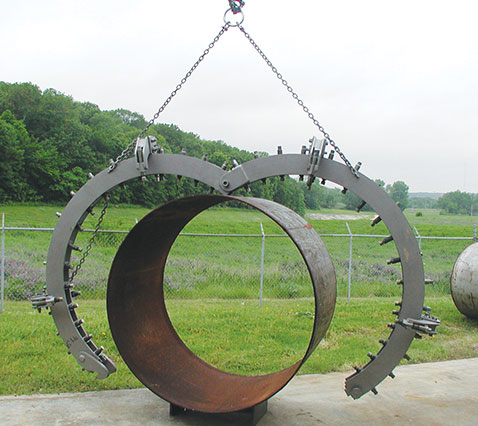

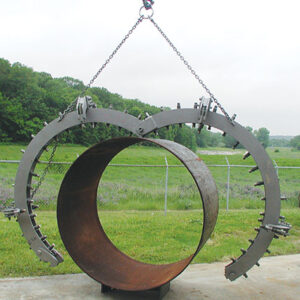

Easy: Self-latching design, 14″ / 356 mm and larger, makes installation simple and safe
Versatile: Handles a range of pipe sizes and materials
| Technical Specification | |||
|---|---|---|---|
| PART NO. | DESCRIPTION | PIPE SIZE RANGE | ESTIMATED SHIPPING WEIGHT |
| D711-0406 | Standard Rim Clamp 4 – 6″ | 4 – 6″ / 114.3 – 168.2 mm | 118 lbs / 54 kg |
| D711-0608 | Standard Rim Clamp 6 – 8″ | 6 – 8″ / 168.2 – 219 mm | 122 lbs / 55 kg |
| D711-0810 | Standard Rim Clamp 8 – 10″ | 8 – 10″ / 219 – 273 mm | 145 lbs / 66 kg |
| D711-1012 | Standard Rim Clamp 10 – 12″ | 10 – 12″ / 273 – 323.8 mm | 168 lbs / 76 kg |
| D711-1214 | Standard Rim Clamp 12 – 14″ | 12 – 14″ / 323.8 – 356 mm | 225 lbs / 102 kg |
| D711-1420M | Mega Rim Clamp 14 – 20″ | 14 – 20″ / 356 – 508 mm | 586 lbs / 266 kg |
| D711-1824M | Mega Rim Clamp 18 – 24″ | 18 – 24″ / 457 – 610 mm | 603 lbs / 273 kg |
| D711-2632M | Mega Rim Clamp 26 – 32″ | 26 – 32″ / 660 – 813 mm | 860 lbs / 390 kg |
| D711-3036M | Mega Rim Clamp 30 – 36″ | 30 – 36″ / 762 – 914 mm | 974 lbs / 442 kg |
| D711-3844M | Mega Rim Clamp 38 – 44″ | 38 – 44″ / 965 – 1,118 mm | 1,112 lbs / 504 kg |
| D711-4248M | Mega Rim Clamp 42 – 48″ | 42 – 48″ / 1,067 – 1,219 mm | 1,176 lbs / 533 kg |
| D711-4652M | Mega Rim Clamp 46 – 52″ | 46 – 52″ / 1,168 – 1,321 mm | 1,200 lbs / 544 kg |
| D711-5056M | Mega Rim Clamp 50 – 56″ | 50 – 56″ / 1,270 – 1,422 mm | 1,280 lbs / 581 kg |
| D711-5460M | Mega Rim Clamp 54 – 60″ | 54 – 60″ / 1,372 – 1,524 mm | 1,322 lbs / 600 kg |
