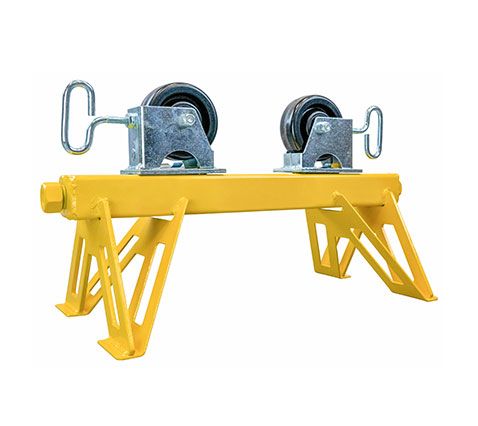

The B&B SUMNER Mini Adjust-A-Roll™ is a compact roller stand designed for space-limited environments. Supporting pipe diameters from 0.5 – 36″ / 12 – 914 mm and loads up to 3,500 lbs / 1,588 kg, it features a four-leg base and a quick-change head system for flexible configurations. With a footprint of just 11 x 22″ / 279 x 559 mm and a shipping weight of 20 lbs / 9 kg, it’s ideal for tight fabrication areas. Fine-thread adjustment allows precise pipe positioning, making it perfect for bench work, small fabrication stations, or field use.
The B&B SUMNER Mini Adjust-A-Roll™ is a compact, high-capacity pipe roller stand engineered for pipe rotation and fabrication tasks in tight or space-limited environments. Despite its small footprint of 11 x 22″ / 279 x 559 mm, the Mini-Roll™ delivers outstanding performance with a pipe capacity of 0.5 – 36″ / 12 – 914 mm and supports loads up to 3,500 lbs / 1,588 kg. Its wide, four-legged base ensures stability, while the quick-change head and fine adjustment screw enable precise pipe positioning.
| Part No | Description | Load Capacity |
|---|---|---|
| 4600BASE | Mini Adjust-A-Roll™ (base only) | n/a |
| 4600SWH | Mini Adjust-A-Roll™ with steel wheel head | 3,500 lbs / 1,588 kg |
| 4600PWH | Mini Adjust-A-Roll™ with phenolic wheel head | 1,000 lbs / 450 kg |
| 4600SSWH | Mini Adjust-A-Roll™ with stainless steel wheel head | 3,500 lbs |
| 4600BTH | Mini Adjust-A-Roll™ with stainless steel ball transfer head | 3,200 lbs / 1,450 kg |
| 4600CRH | Mini Adjust-A-Roll™ with conveyor roller head | 2,000 lbs / 900 kg |
