• One clamp works on multiple pipe sizes
• Able to do light reforming to correct ovality in the pipe
• Able to push or pull the pipe joint together to attain the proper gap
• Works on carbon steels, stainless steels, and alloys
• Clamp can work on multiple types of joints

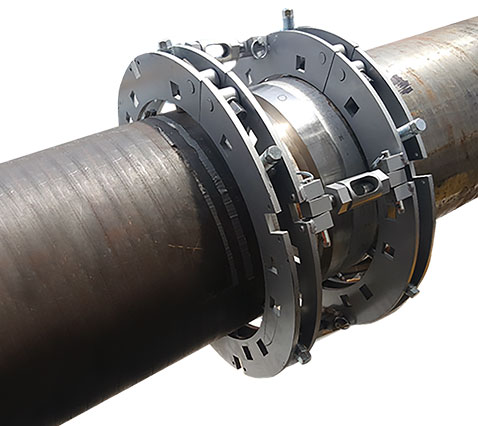

• Splitframe rim style clamp with turnbuckles, solid steel frames
All Super Clamps Include:
• Parts and operating manual
• Jackscrews with swivel pads
• Jackscrew breaker bar and socket
Align, reform, and set the weld gap with a few turns of a wrench
| SUPER CLAMP REFORMING ABILITIES | |||
|---|---|---|---|
| MODEL PART NO. | REFORMS TO SCHEDULE | ALIGNS TO SCHEDULE | PIPE SIZE RANGE |
| SC-RC-0612HD | 40 | 80 | 6 – 12″ / 168.2 – 323.8 mm |
| SC-RC-1218HD | 40 | 80 | 12 – 18″ / 323.8 – 457 mm |
| SC-RC-1824HD | 40 | 80 | 18 – 24″ / 457 – 610 mm |
| SC-RC-2430HD | 40 | 80 | 24 – 30″ / 610 – 762 mm |
| SC-RC-3036HD | 40 | 80 | 30 – 36″ / 762 – 914 mm |
| SUPER CLAMP REFORMING ABILITIES | ||||||
|---|---|---|---|---|---|---|
| For MAX 1/16″ Our of Round Condition Schedule | ||||||
| SUPERCLAMP | PIPE OD | 10 | 20 | 30 | 40 | STD |
| SC-RC-0612 | 6 | — | — | — | — | — |
| SC-RC-0612 | 8 | x | — | — | — | — |
| SC-RC-0612 | 10 | x | x | — | — | — |
| SC-RC-0612 | 12 | x | x | x | x | x |
| SC-RC-1218 | 12 | x | x | — | — | — |
| SC-RC-1218 | 14 | x | x | x | — | x |
| SC-RC-1218 | 16 | x | x | x | — | x |
| SC-RC-1218 | 18 | x | x | x | x | x |
| SC-RC-1824 | 18 | x | x | x | — | x |
| SC-RC-1824 | 20 | x | x | x | — | x |
| SC-RC-1824 | 22 | x | x | x | — | x |
| SC-RC-1824 | 24 | x | x | x | x | x |
| SC-RC-2430 | 24 | x | x | x | — | x |
| SC-RC-2430 | 26 | x | x | — | — | x |
| SC-RC-2430 | 28 | x | x | x | — | x |
| SC-RC-2430 | 30 | x | x | x | — | x |
| SC-RC-3036 | 30 | x | x | x | — | x |
| SC-RC-3036 | 32 | x | x | x | x | x |
| SC-RC-3036 | 34 | x | x | x | x | x |
| SC-RC-3036 | 36 | x | x | x | x | x |
| For MAX 1/8″ Our of Round Condition Schedule | ||||||
|---|---|---|---|---|---|---|
| SUPERCLAMP | PIPE OD | 10 | 20 | 30 | 40 | STD |
| SC-RC-0612 | 6 | — | — | — | — | — |
| SC-RC-0612 | 8 | — | — | — | — | — |
| SC-RC-0612 | 10 | — | — | — | — | — |
| SC-RC-0612 | 12 | x | — | — | — | — |
| SC-RC-1218 | 12 | — | — | — | — | — |
| SC-RC-1218 | 14 | — | — | — | — | — |
| SC-RC-1218 | 16 | x | — | — | — | — |
| SC-RC-1218 | 18 | x | x | — | — | — |
| SC-RC-1824 | 18 | — | — | — | — | — |
| SC-RC-1824 | 20 | x | — | — | — | — |
| SC-RC-1824 | 22 | x | — | — | — | — |
| SC-RC-1824 | 24 | x | x | — | — | x |
| SC-RC-2430 | 24 | x | — | — | — | — |
| SC-RC-2430 | 26 | x | — | — | — | x |
| SC-RC-2430 | 28 | x | — | — | — | x |
| SC-RC-2430 | 30 | x | x | — | — | x |
| SC-RC-3036 | 30 | x | — | — | — | x |
| SC-RC-3036 | 32 | x | — | — | — | x |
| SC-RC-3036 | 34 | x | x | — | — | x |
| SC-RC-3036 | 36 | x | x | — | — | x |
