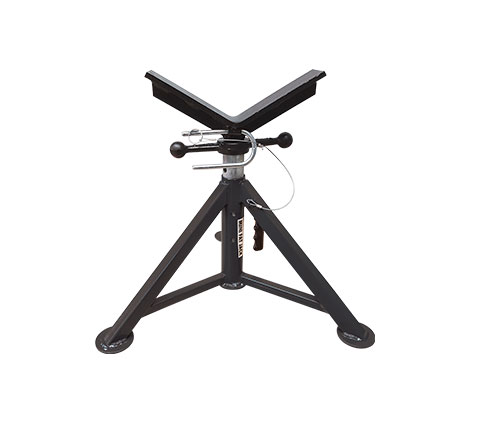

The Fat Jack™ Mini offers powerful support in a compact form factor. Designed for low-profile tasks, it adjusts from 16 – 28.5″ / 406 – 724 mm and handles pipe diameters up to 36″ / 900 mm. With a maximum load capacity of 6,000 lbs / 2,725 kg, it is perfect for smaller jobs that still demand industrial strength. Featuring a fixed-leg steel frame, double locking pins, and a 1.5″ ACME thread, this 28 lbs / 11.4 kg unit is a reliable tool for any shop or job site.
The B&B SUMNER Fat Jack™ range entails high-performance pipe jack stands designed to handle the most demanding industrial applications. Crafted from rugged 1.25″ steel tubing, the Fat Jack™ series is engineered to offer superior strength, stability, and reliability on the job site and is available in three sizes: Mini, Midi, and Maxi – each capable of withstanding heavy loads up to 6,000 lbs / 2,725 kg, setting a new benchmark for durability in material handling solutions.
| Advantages: |
|---|
| Supports loads up to 6,000 lbs / 2,725 kg. |
| Equipped with a 1.5″ ACME fine adjustment thread and a large ergonomic handle for smooth and accurate height changes. |
| Quick-secure double locking pin system – fast and reliable height locking. |
| Available with two head options. |
| Sturdy construction – built with 1.25″ steel tubing. |
| Wide base for stability. |
| Max. pipe capacity 36″ / 900 mm with V-head and 24″ / 600 mm with roller heads. |
| Part No | Description | Load Capacity |
|---|---|---|
| 4702 | Fat Jack™ Mini with V-head | 6,000 lbs / 2,725 kg |
| 4702SWH | Fat Jack™ Mini with steel wheel head | 6,000 lbs / 2,725 kg |
| 4702SSWH | Fat Jack™ Mini with stainless steel wheel head | 6,000 lbs / 2,725 kg |
