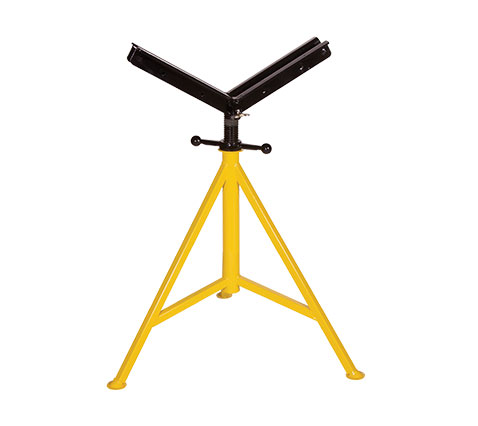

The Big Vee JAX™ stand supports pipe diameters ranging from 4 – 36″ / 101.6 – 914.4 mm and loads up to 5,000 lbs / 2,265 kg. Its 12″ / 305 mm V-head ensures secure cradling of large pipe sections. A gear-driven ACME-threaded height adjuster enables precision control. Built from 1″ steel tubing with a three-legged base, it provides a sturdy stance for field and shop use. Total shipping weight is 64 lbs / 29 kg.
The B&B SUMNER Big Vee Jax™ jack stand is a heavy-duty support tool designed for aligning and stabilizing large-diameter pipes in industrial and fabrication settings. Ideal for professional welders and pipefitters, it accommodates pipe sizes from 4 – 36″ / 101.6 – 914.4 mm and supports up to 5,000 lbs / 2,265 kg.
The jack features a V-head for secure pipe cradling and uses a gear-driven ACME screw for fast, precise height adjustments. Its three-legged steel frame provides exceptional stability on both shop floors and field sites. Built from durable 1-inch square tubing, the Big V is engineered for long-lasting performance under demanding conditions. Optional V-head attachments increase its adaptability for different pipe materials and job requirements. While its size requires freight handling, its strength and versatility make it indispensable for pipe fabrication and alignment tasks involving large-diameter pipe sections.
| Advantages: |
|---|
| Height adjustment: 39 – 72″ / 991 – 1,829 mm |
| Load capacity: 1,000 lbs / 450 kg |
| Extra-wide 38″ footprint increases stability. |
| Lock washer can be fastened to base for safety. |
| Quick lock washer height adjustment for easy use |
| 11/2″ (1.5″) ACME-thread adjustment. |
| Folding design allows easy access into tight work spaces. |
| Bottom T-handle locks folding base into fixed position. |
| Pipe diameter: 1 – 12″ |
| Part No | Description | Load Capacity |
|---|---|---|
| 3501 | Big Vee Jax™ with V-Head | 5,000 lbs / 2,265 kg |
| 3501SWH | Big Vee Jax™ with steel wheels in V-head | 5,000 lbs / 2,265 kg |
| 3501PWH | Big Vee Jax™ with phenolic wheels in V-head | 1,000 lbs / 450 kg |
| 3501SSWH | Big Vee Jax™ with stainless steel wheels in V-head | 1,000 lbs / 450 kg |
| 3501SSH | Big Vee Jax™ with stainless steel sleeves in V-head | 5,000 lbs / 2,265 kg |
| 3501BTH | Big Vee Jax™ with stainless steel ball transfer V-head | 5,000 lbs / 2,265 kg |
