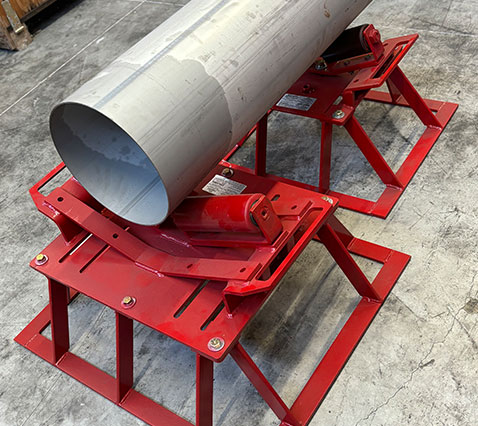

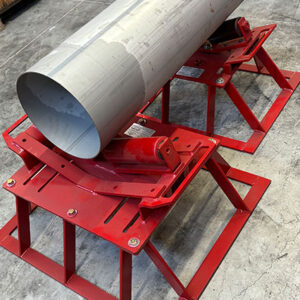

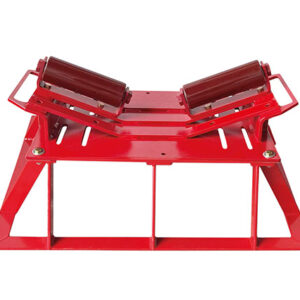

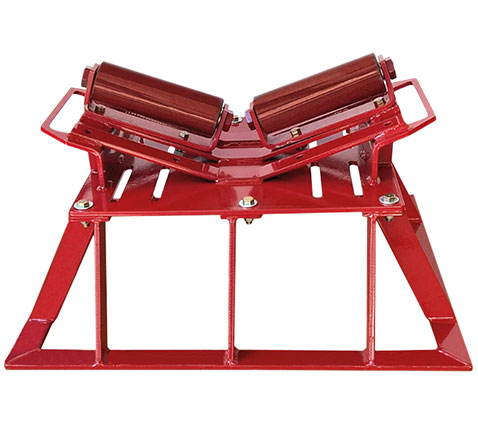

Mathey Dearman’s Pipe Launchers have fully compatible parts that can change from a pipe rack clamping roller to a pipeline launcher in just a few minutes. The unique clamping system fastens the roller to an I-beam from both sides of the flange. This option is great for installing and fabricating pipe in pipe racks or other tight and enclosed areas. Also, the roller mechanism can be attached to a stand better suited for pipeline work and/or directional drilling.
Features and Advantages
• Replaceable urethane roller wheels can be unbolted in seconds.
• Convenient and safe carry handles.
• Converts from pipe launcher to beam roller.
• Pipe Launchers nest and stack efficiently for shipping and storage.
• Easy part replacement with a modular design.
• Add wheels to convert standard capacity to heavy-duty capacity.
• From 2 – 60″ pipe capacity.
• Up to 20,000 lbs weight capacity.

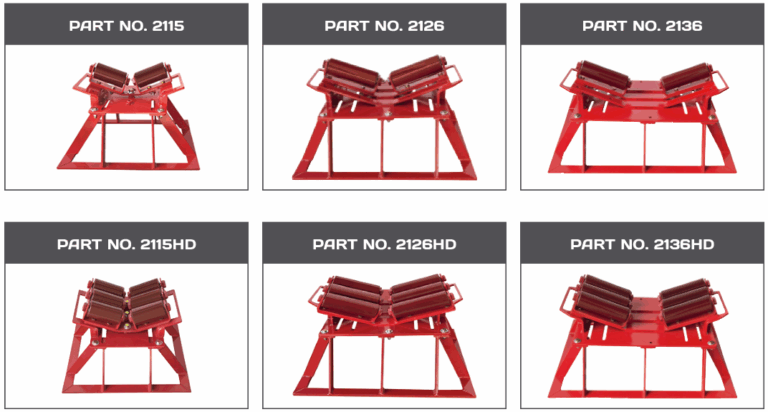

| Pipe Launchers Specifications | |||||
|---|---|---|---|---|---|
| PART NO. | DESCRIPTION | LOAD CAPACITY | WEIGHT CAPACITY | SHIPPING WEIGHT | DIMENSIONS L x W x H1 – H2 |

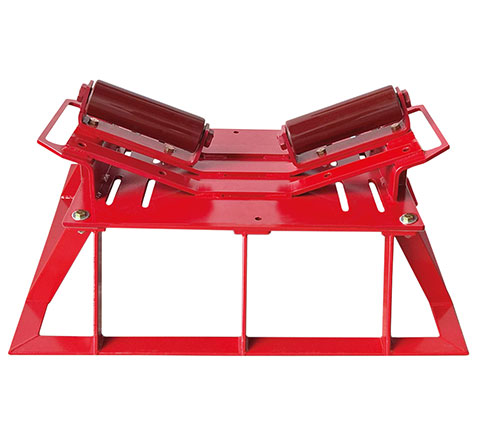

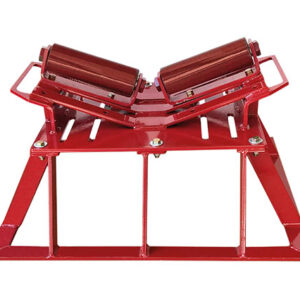

| 2115 | Pipe Launcher (two rollers) | 2 – 24″ / 50.8 – 609.6 mm | 2,500 lbs / 1,100 kg | 89 lbs / 40.4 kg | 23 x 26 x 18″ / 584.2 x 660.4 x 457.2 mm |

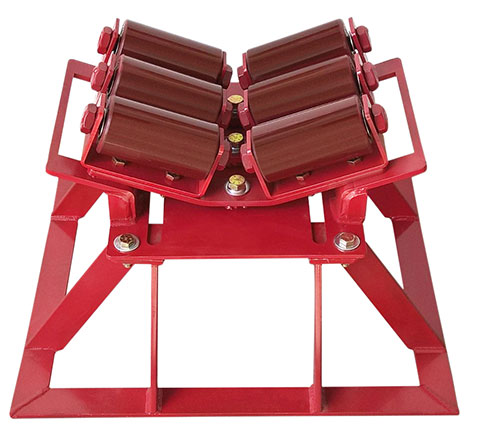

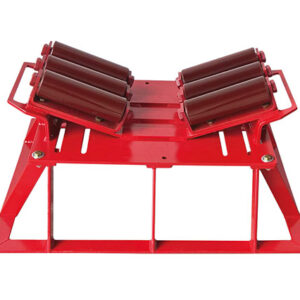

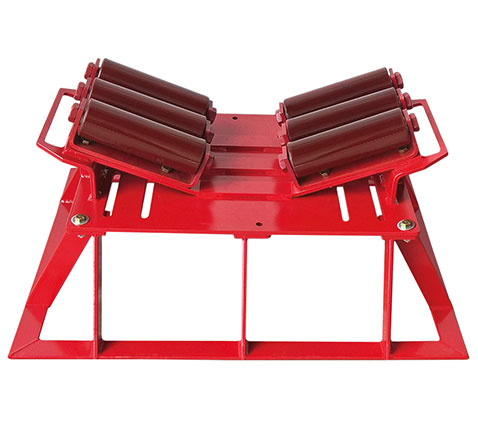

| 2115HD | Pipe Launcher HD (six rollers) | 2 – 24″ / 50.8 – 609.6 mm | 7,500 lbs / 3,400 kg | 126 lbs / 57.2 kg | 23 x 26 x 18″ / 584.2 x 660.4 x 457.2 mm |
| 2126 | Pipe Launcher (two rollers) | 4 – 48″ / 101.6 – 1,219.2 mm | 10,000 lbs / 4,540 kg | 162 lbs / 73.5 kg | 30 x 36 x 19″ / 762 x 914.4 x 482.6 mm |
| 2126HD | Pipe Launcher HD (six rollers) | 4 – 48″ / 101.6 – 1,219.2 mm | 20,000 lbs / 9,070 kg | 213 lbs / 96.6 kg | 30 x 36 x 19″ / 762 x 914.4 x 482.6 mm |
| 2136 | Pipe Launcher (two rollers) | 16 – 60″ / 406.4 – 1,524 mm | 10,000 lbs / 4,540 kg | 178 lbs / 80.7 kg | 30 x 36 x 19″ / 762 x 914.4 x 482.6 mm |
| 2136HD | Pipe Launcher HD (six rollers) | 16 – 60″ / 406.4 – 1,524 mm | 20,000 lbs / 9,070 kg | 229 lbs / 103.9 kg | 30 x 36 x 19″ / 762 x 914.4 x 482.6 mm |
