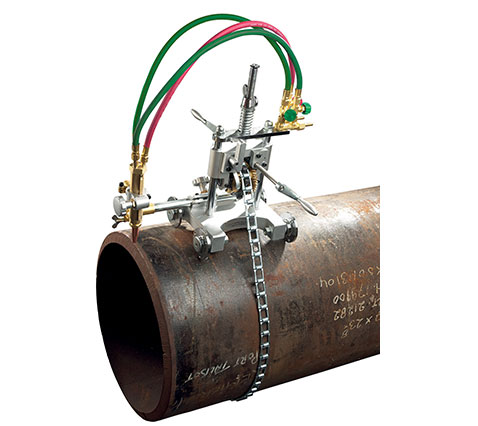

Mathey Dearman’s E-Z Pipecut portable oxy-fuel cutting and bevelling chain-driven machines are the economical solution for cutting and bevelling pipe with wall thickness 0.197″ / 5 mm up to 2 ” / 50 mm.
The Mathey Dearman E-Z Pipecut Manual is small and compact, strong and reliable, used by contractors, welders, and pipe fitters, equally on-site or in the workshop.
The E-Z Pipecut Manual portable is a straightforward, hand-operated, compact chain-driven pipe cutting machine that provides a smooth, accurate cutting action by incorporating a low gear ratio and worm wheel drive.
The machine also features a quick-release clutch that allows the operator to disengage the chain from the drive cog for rapid setup and positioning.
The bevelling head angle (up to 45°) can be set quickly and accurately by scale on a rack and pinion.
E-Z Pipecut Manual Includes:
- Cutting machine E-Z Pipecut manual
- Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzles (not interchangeable with Mathey Dearman saddle machines)
- Standard chain for cutting pipe diameter of 4.5 – 24″ / 114 – 600 mm
- Operation instructions

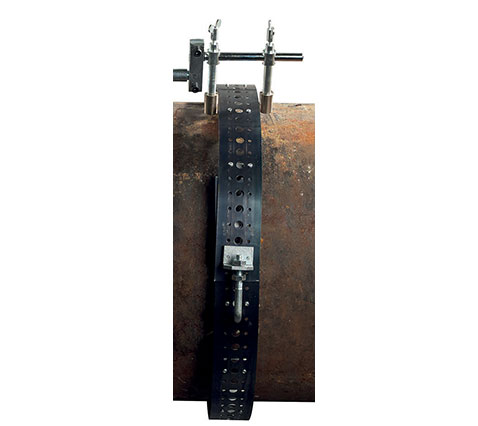

GUIDE BAND
For guaranteed square cuts and bevels on pipe diameters larger than 24″ / 600 mm, using the optional guide band system to suit the relevant pipe size(s) is recommended.
* Outside the USA, the green hoses will be blue
| Technical Specification | |
|---|---|
| PART NO. | EZPCM |
| POWER SUPPLY | Manual-driven unit |
| PIPE DIAMETER | Up to 24″ / 600 mm (in standard configuration) |
| WALL THICKNESS | 0.197 – 2″ / 5 – 50 mm |
| TORCH | Universal nozzle-mix torch suitable for all nozzle-mix cutting nozzle (nozzles not included) |
| CUT/BEVEL ANGLE | Variable up to 45° |
| VERTICAL TORCH +/- | 2″ / 50 mm |
| LATERAL TORCH +/- | 4″ / 100 mm |
| TRACK WIDTH | 9.1″ / 230 mm |
| CUTTING SPEED | Speed determined by operator |
| WEIGHT | 8.50 kg / 18.70 lbs |

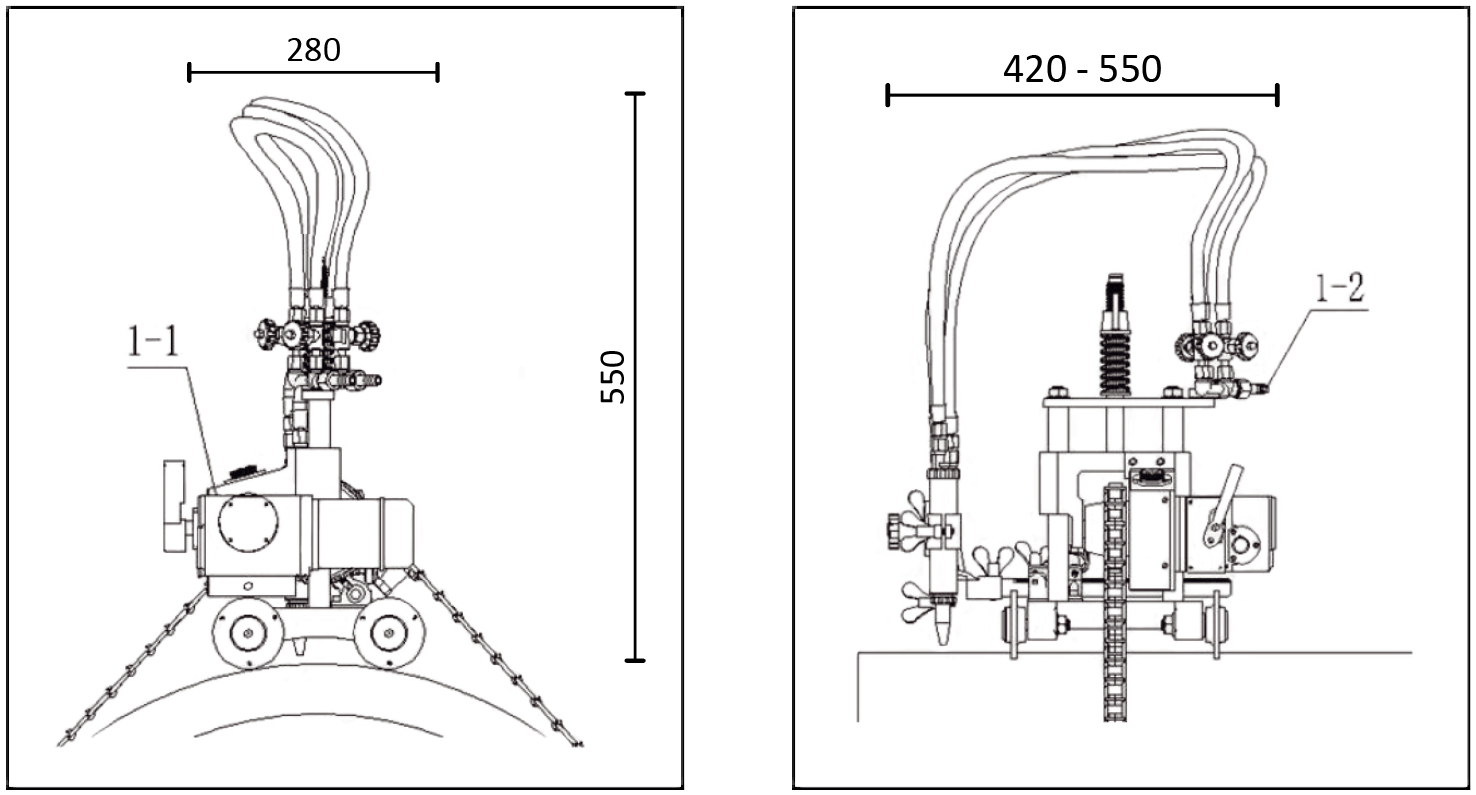

| DIMENSIONS | L x W x H – 350 x 420 x 550 mm |
Guide band calculation: Pipe diamter (inch) + 2 x 3.142 + 6 = (total inch) x 2.54 = (total cm), E.G. 36″ + 2 x 3.142 = 119.40 + 6 = (125.40 total inch) x 2.54 = (318.51 total cm)
