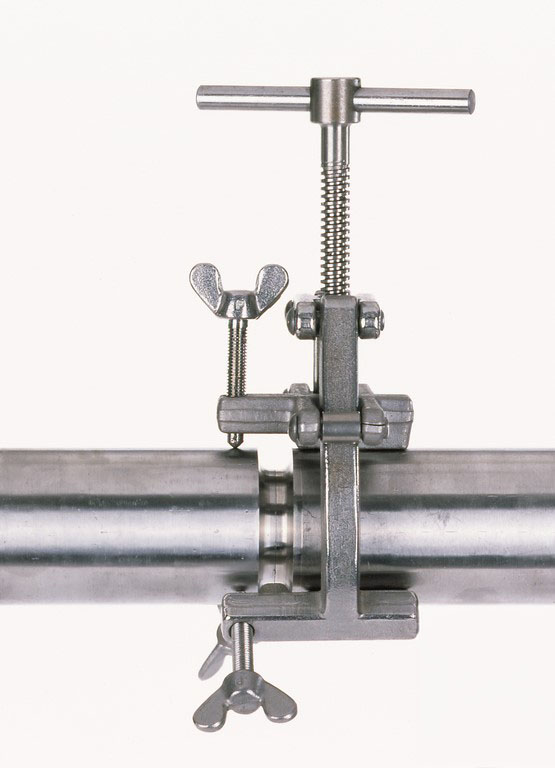

Description:
– Allows efficient preparation of welding
– Easy handling
– Optimized working security
– High quality by precise microadjustment
– All items are made of galvanized steel or stainless steel
– Wing bolts with stainless steel ball bearing for every type of welding clamps*

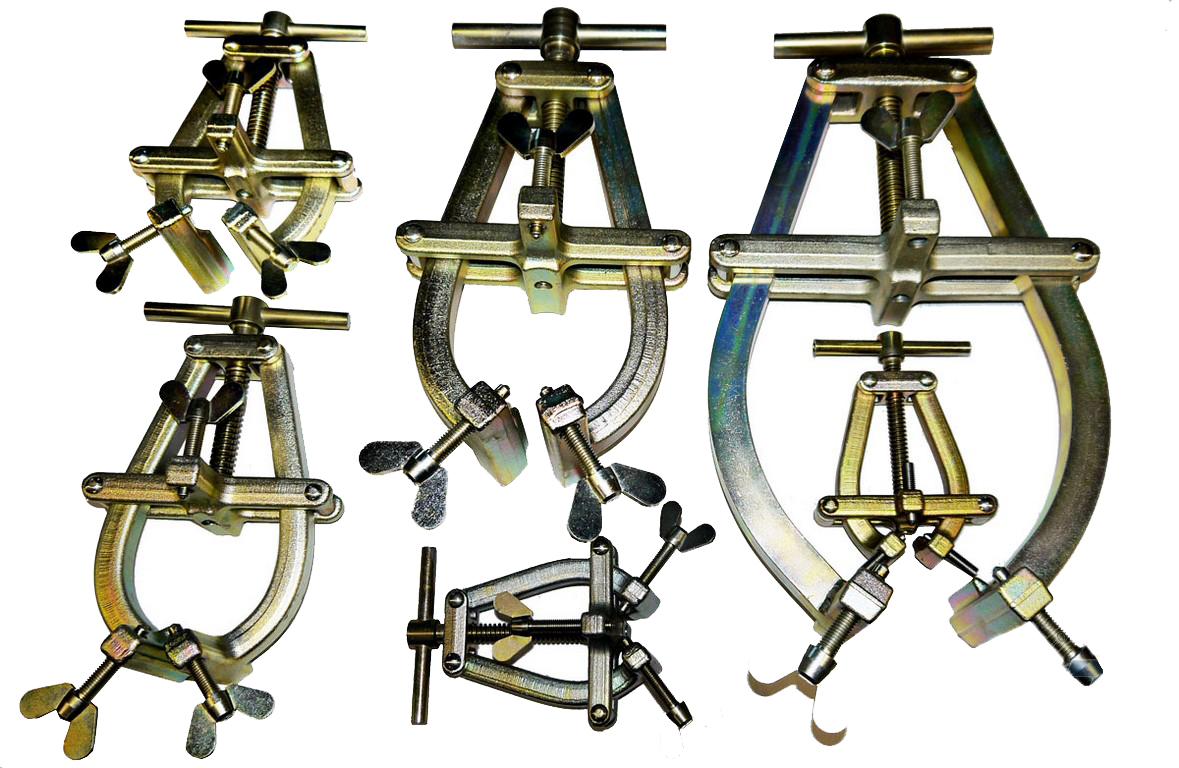

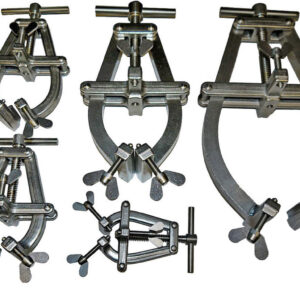

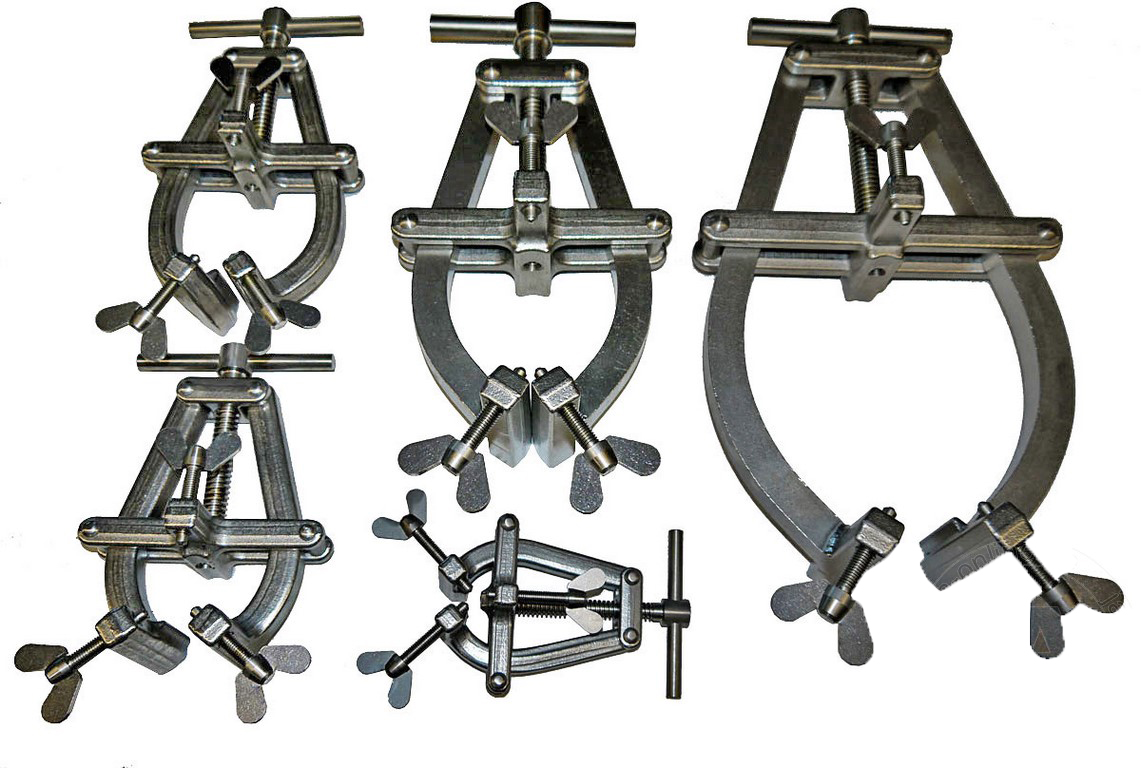

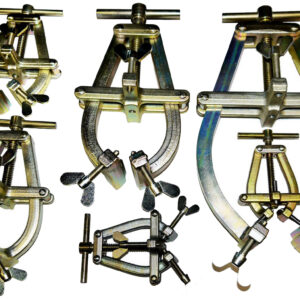

Available in the following sizes:
| Type | 1/2" - 3" * | 1" - 3" | 2" - 5" | 4" - 7" | 5" - 9" | 10" - 14" |
|---|---|---|---|---|---|---|
| Clamping range | 12 - 90 mm | 20 - 90 mm | 50 - 150 mm | 90 - 190 mm | 125 - 225 mm | 225 - 370 mm |
| DN | 15-80 | 20-80 | 50-125 | 90-190 | 125-225 | 225-370 |
| Weight | 1,16 kg | 1,35 kg | 3,0 kg | 3,3 kg | 7,0 kg | 9,0 kg |
| Item no / Steel | 0503G | 103G | 205G | 407G | 509G | 1014G |
| Item no / SS steel | - | 103R | 205R | 407R | 509R | 1014R |
