For “Forming” Pipe- and Container Welding from Ø 38 mm to Ø 410 mm (Pipe inner diameter).
This system can be extended, shortened and retrofitted with additional components or sealing discs as reqiured.

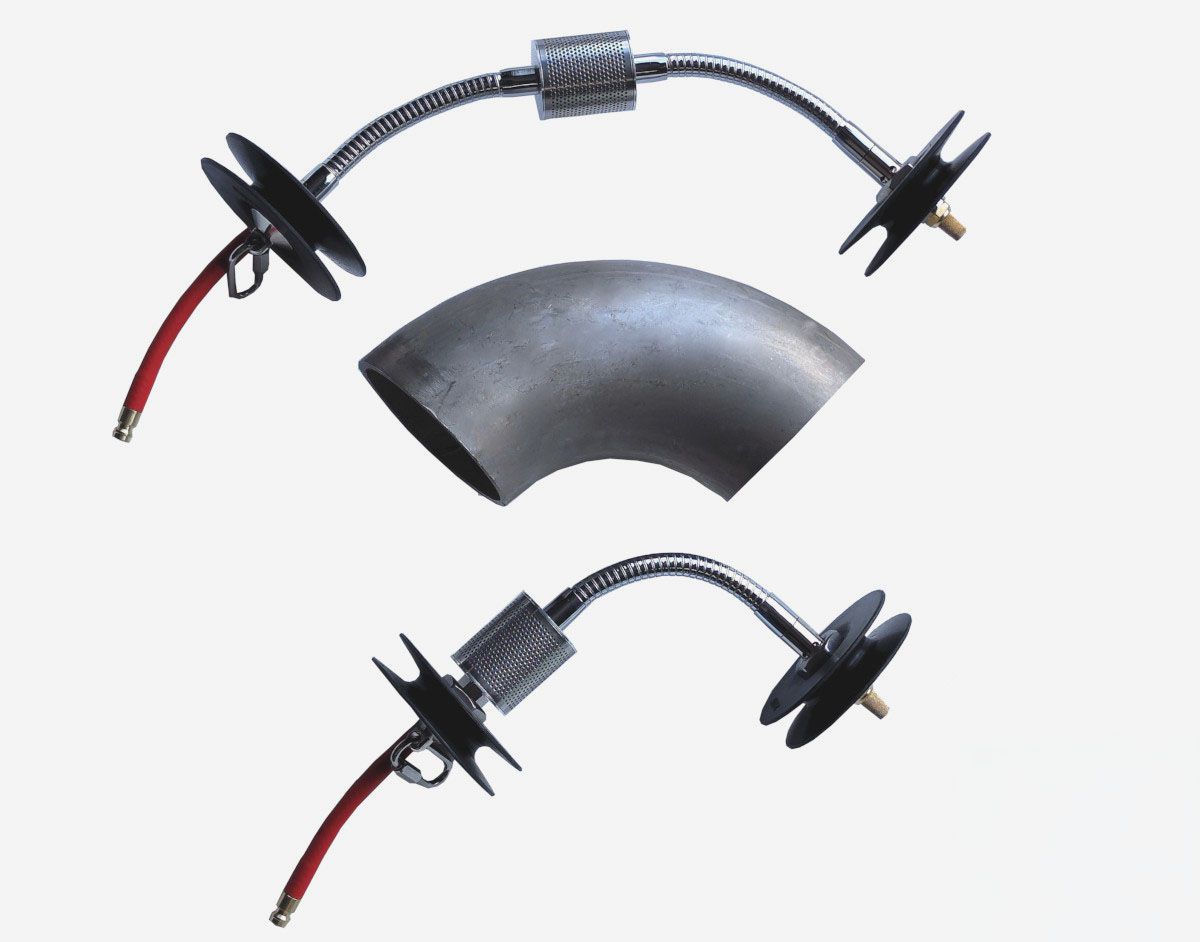

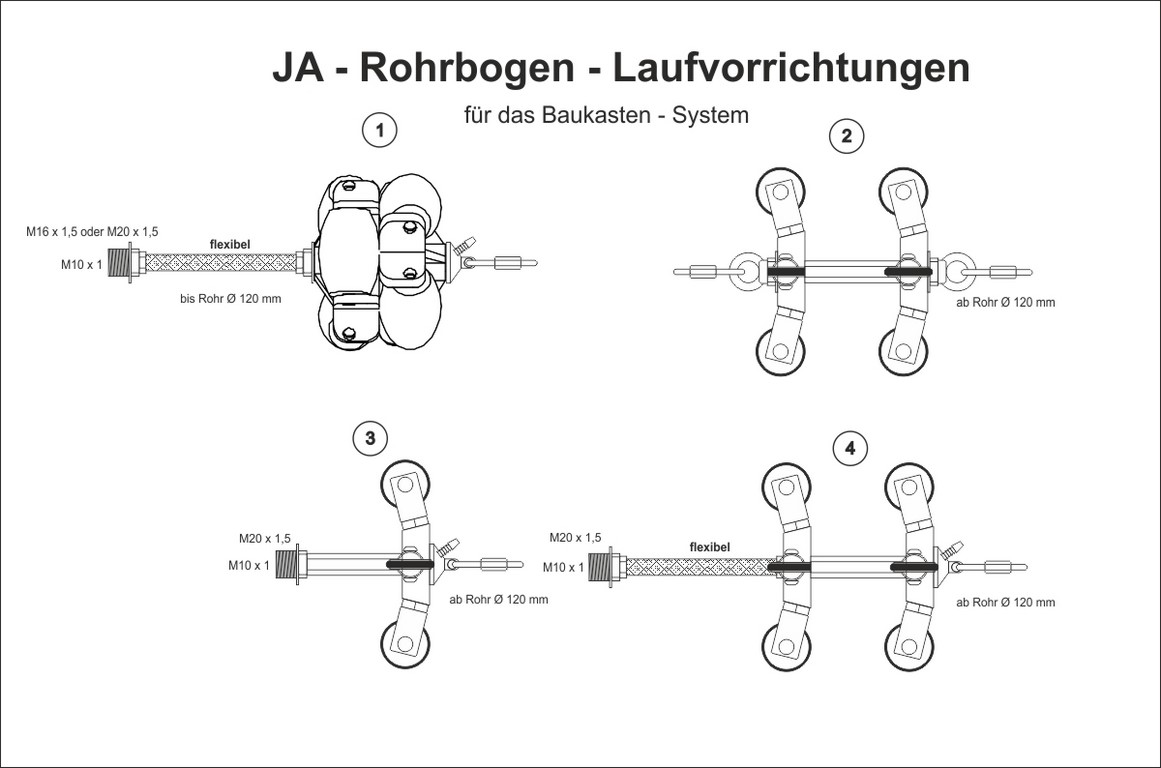

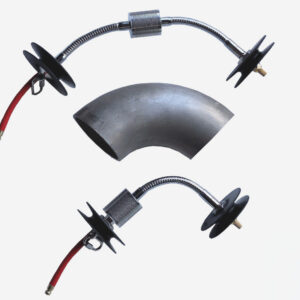

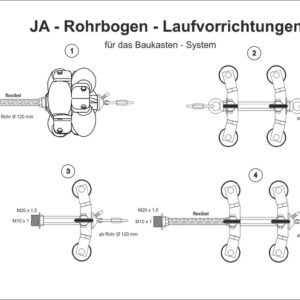

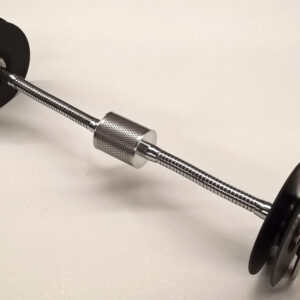

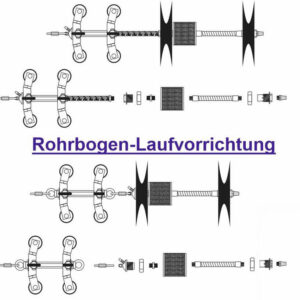

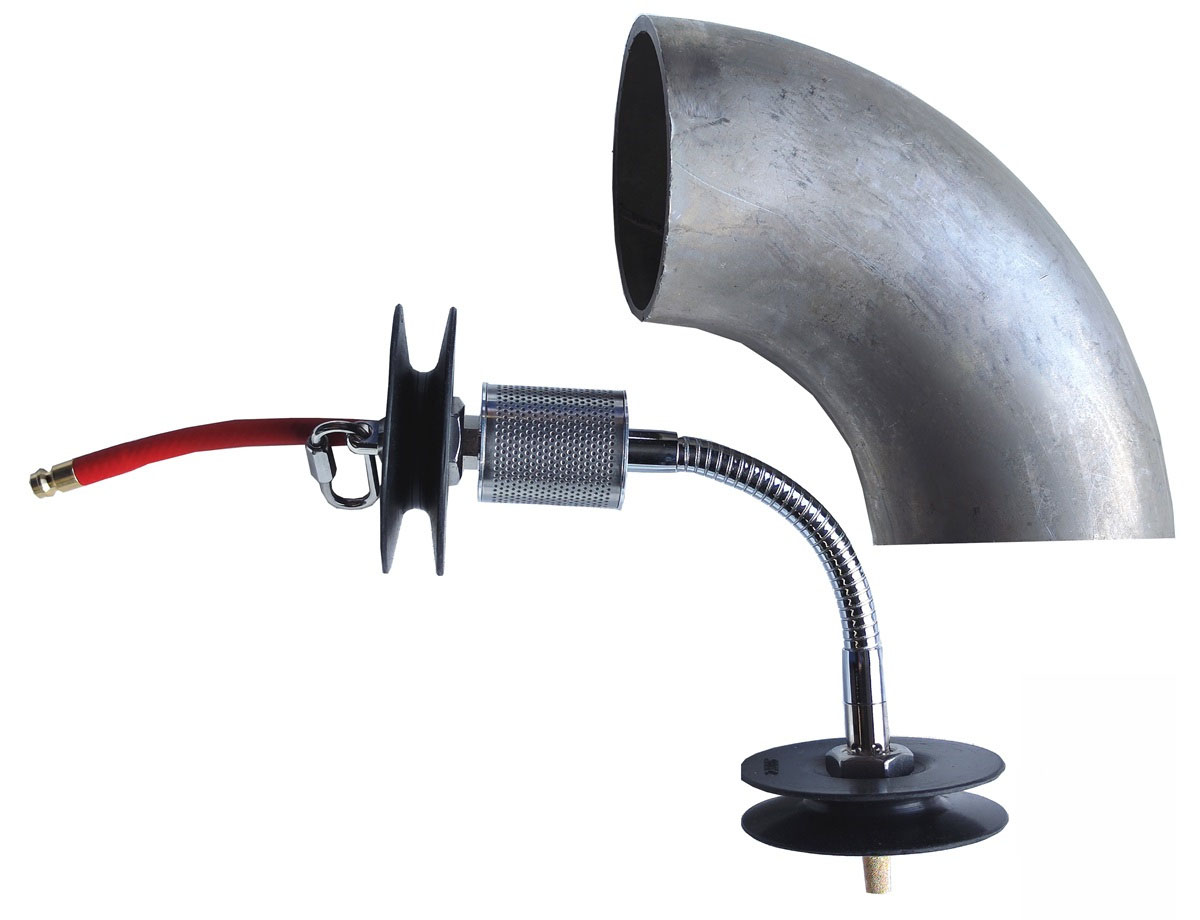

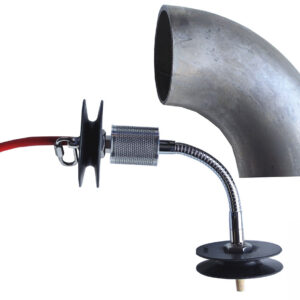

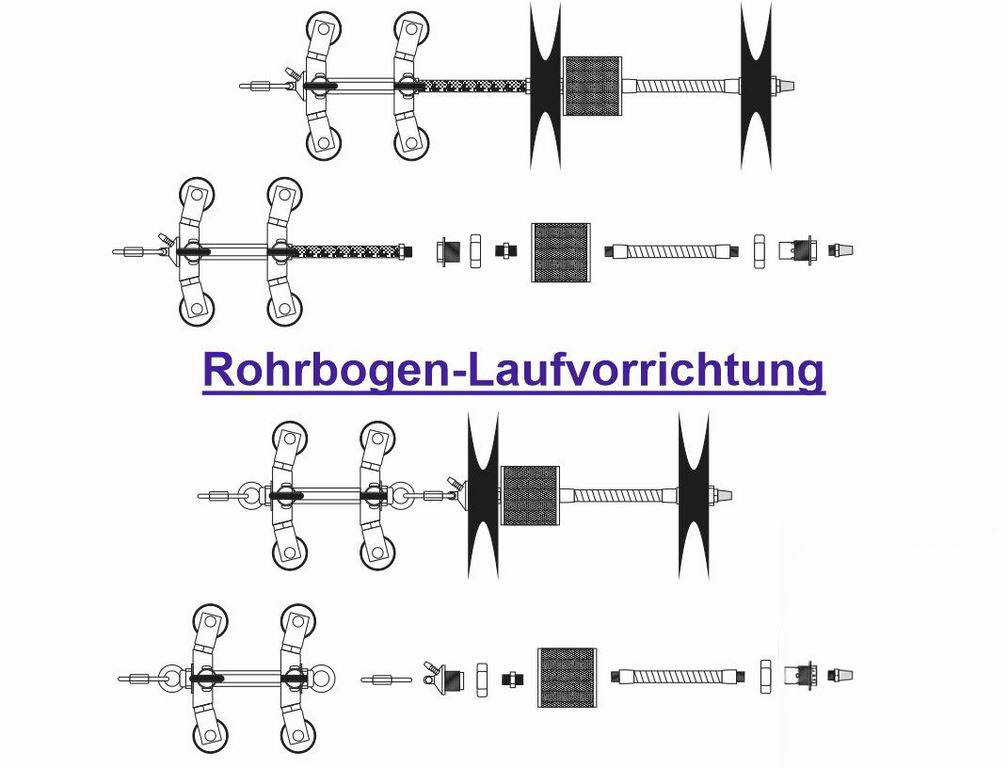

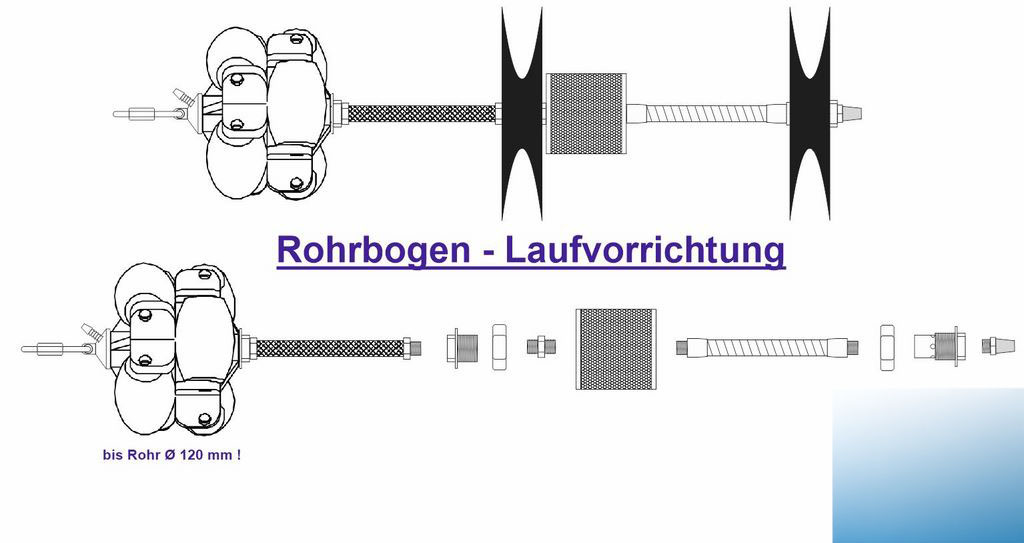

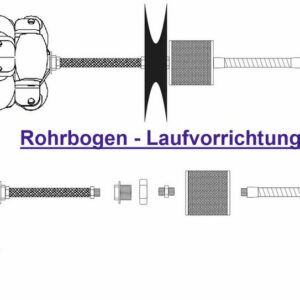

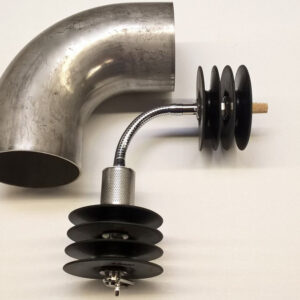

Elbows–run devices facilitate sliding over long distances and through bends.

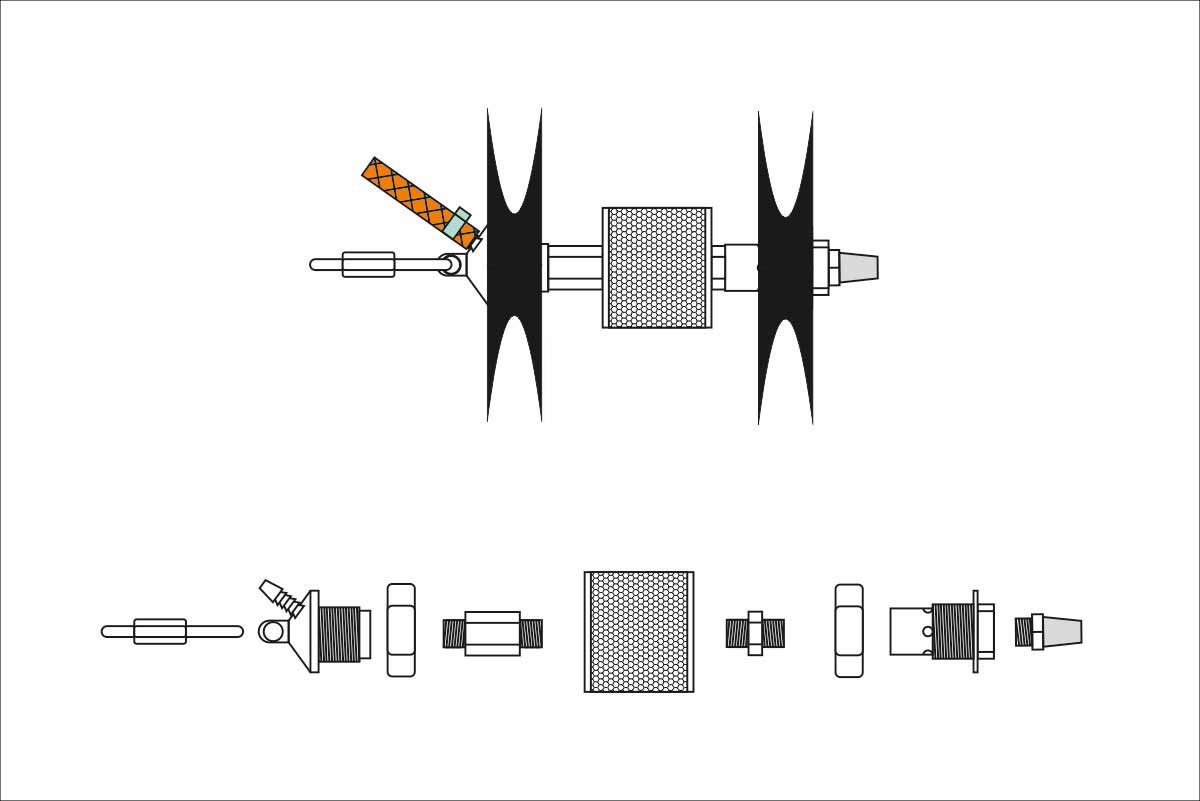

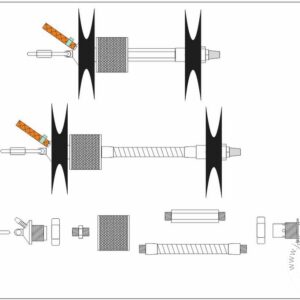

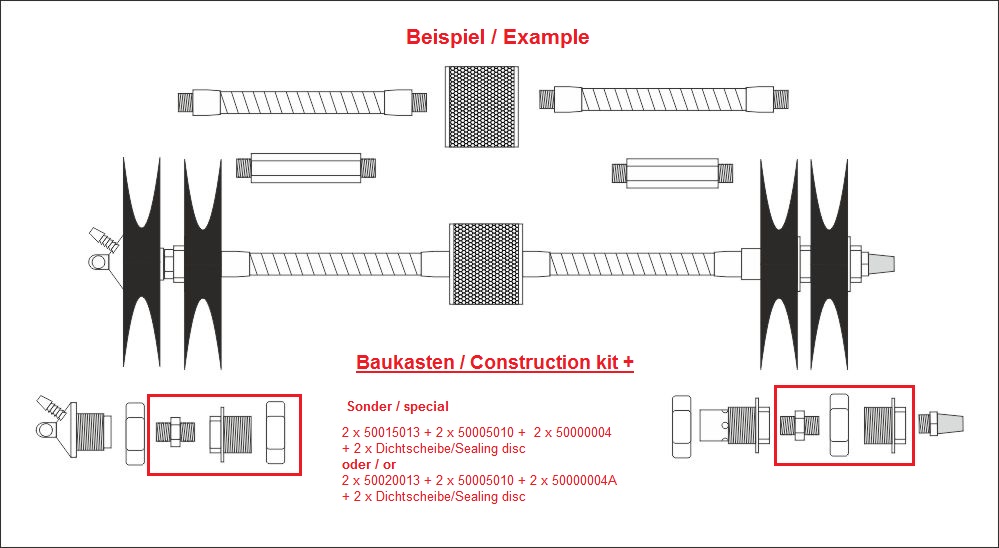

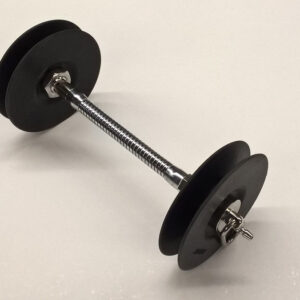

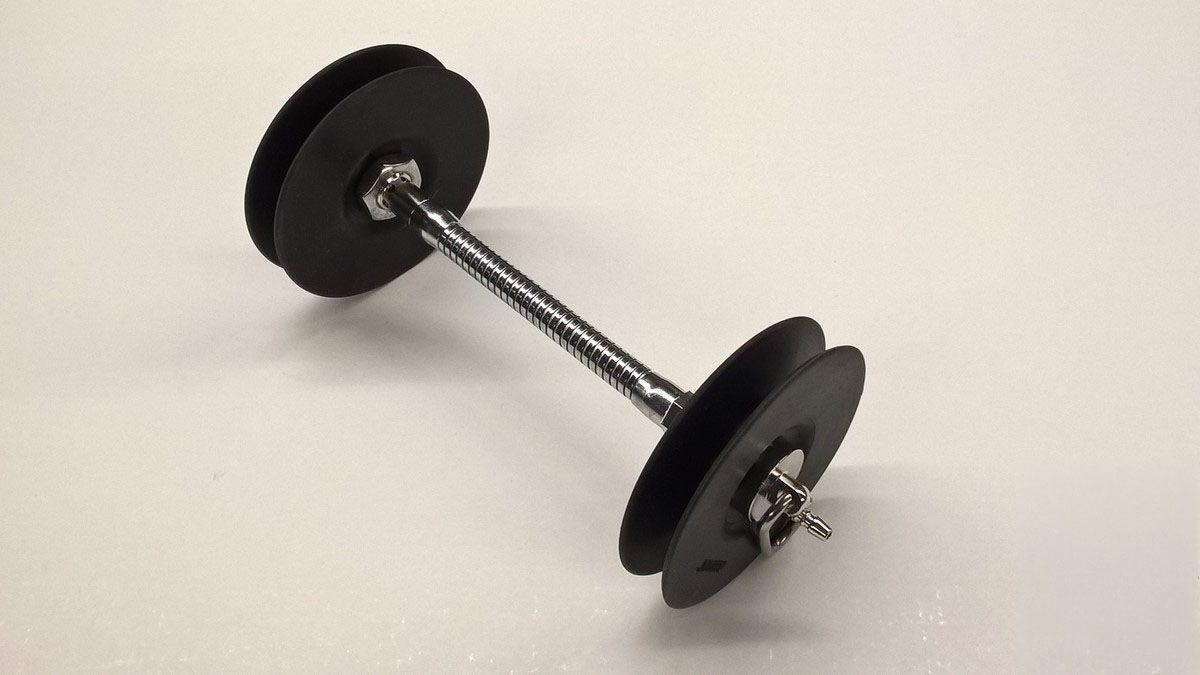

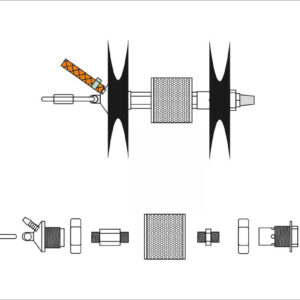

Modular = Each component is equipped with the connecting thread “M10 x 1“, making all components freely combinable and extendable.

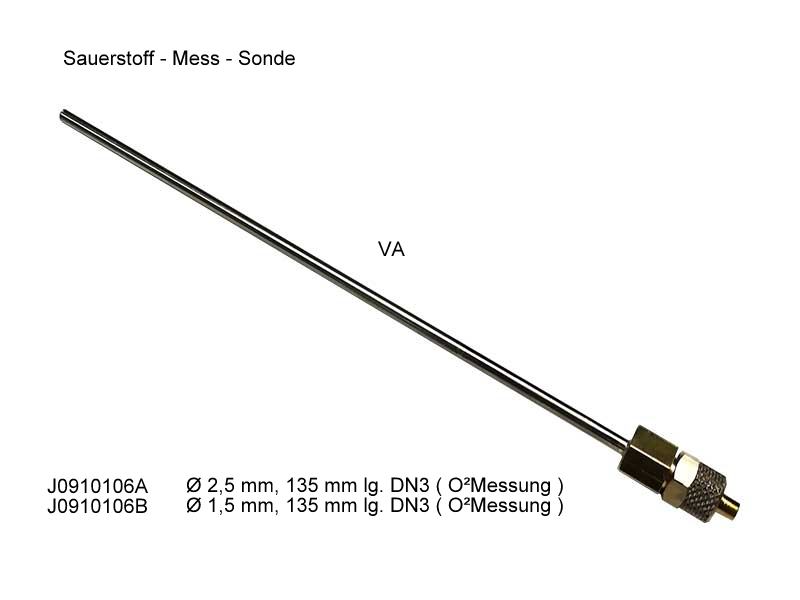

An optional measurement connection for measuring the residual oxygen can be retrofitted.

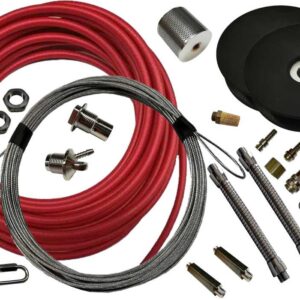

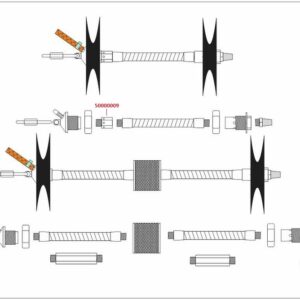

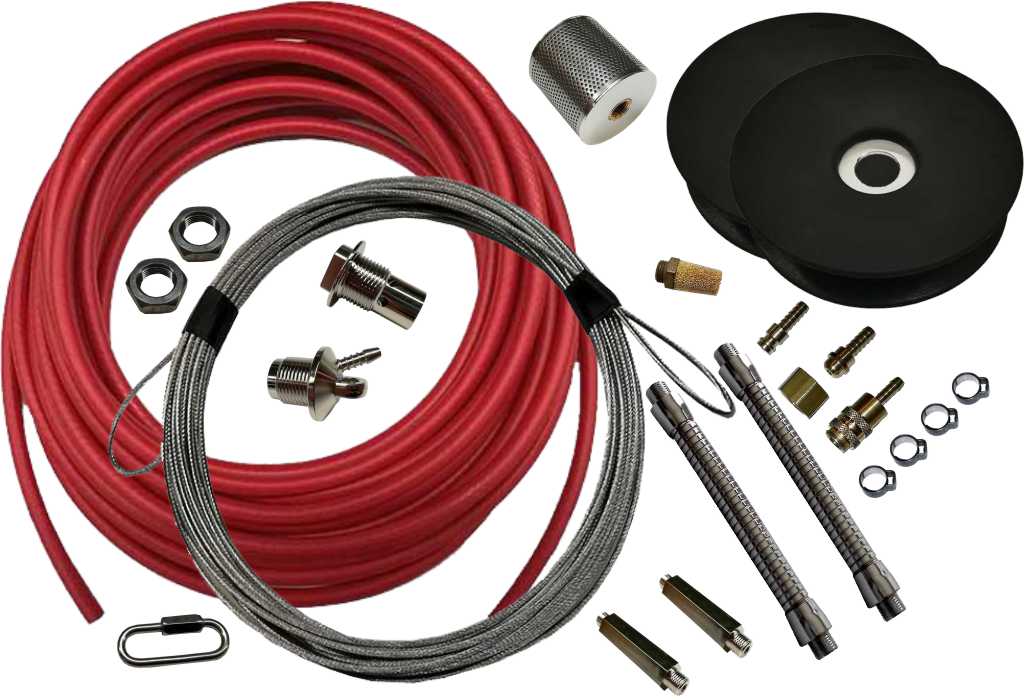

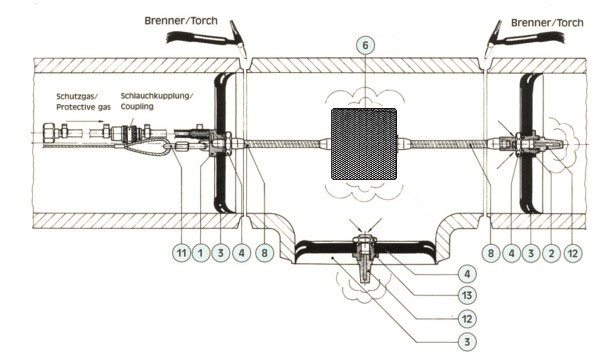

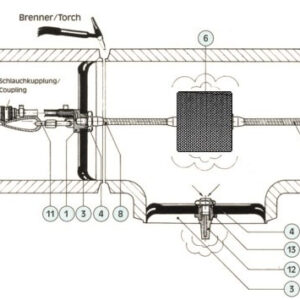

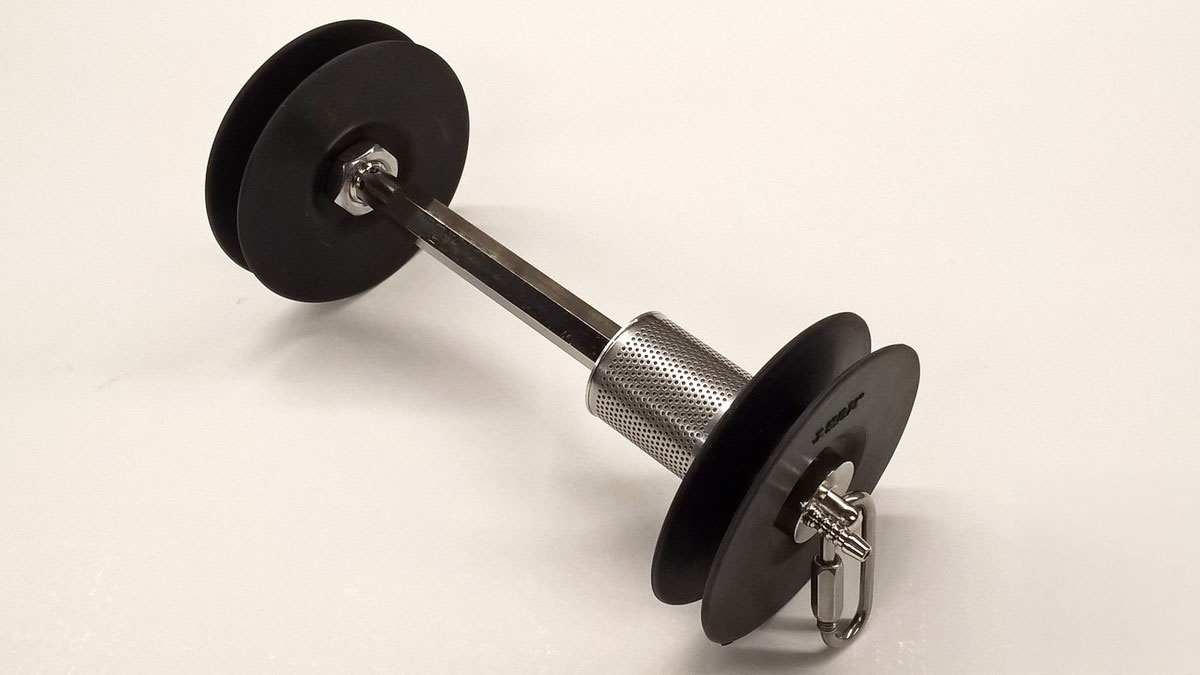

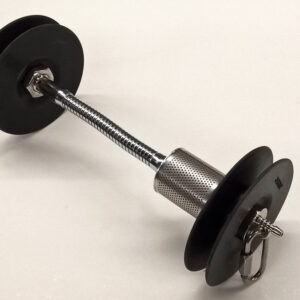

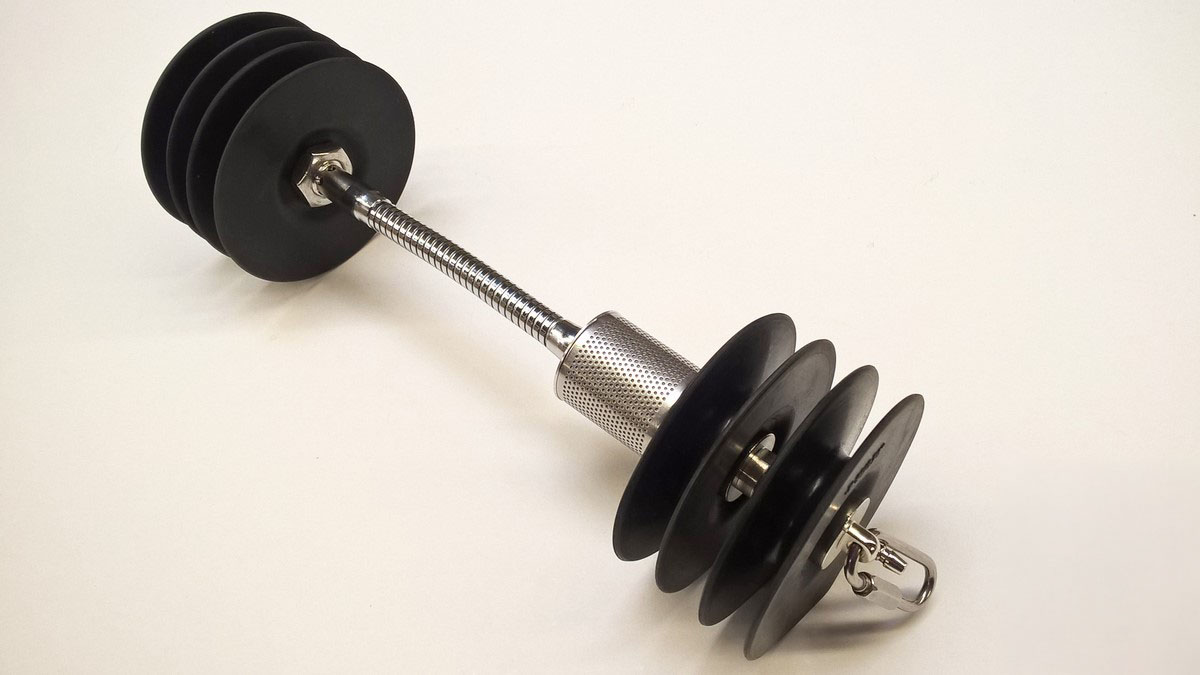

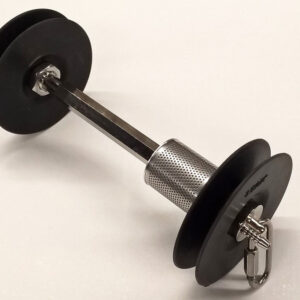

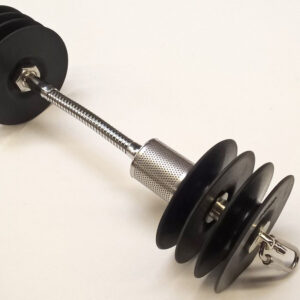

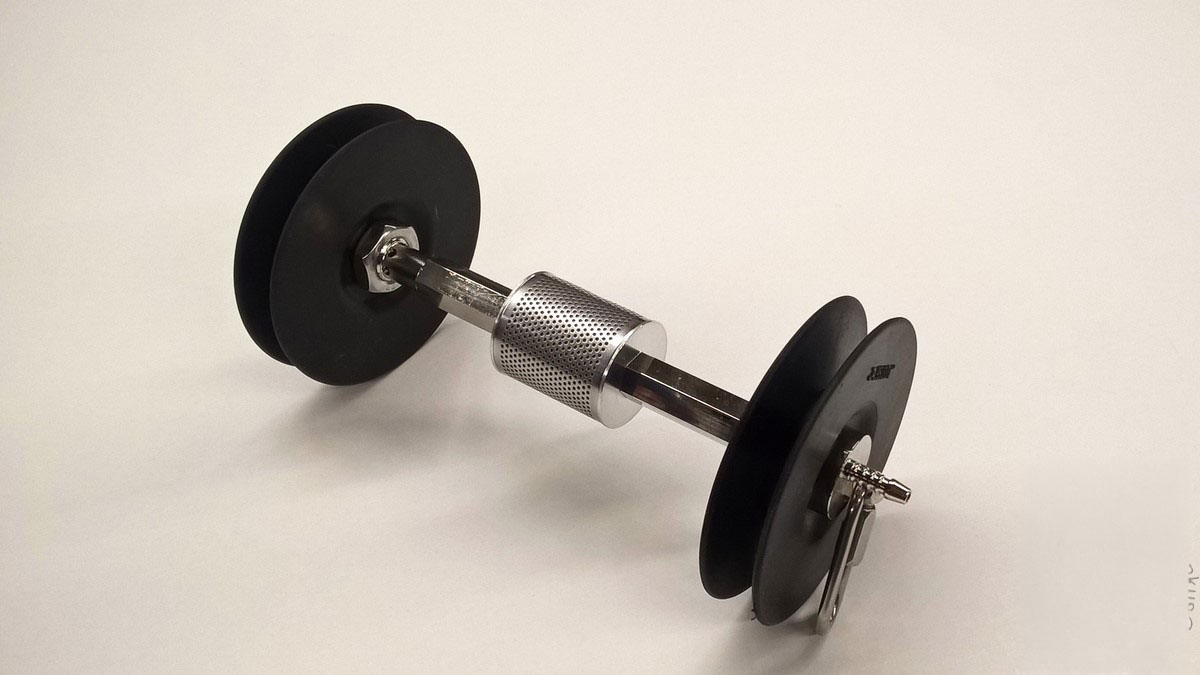

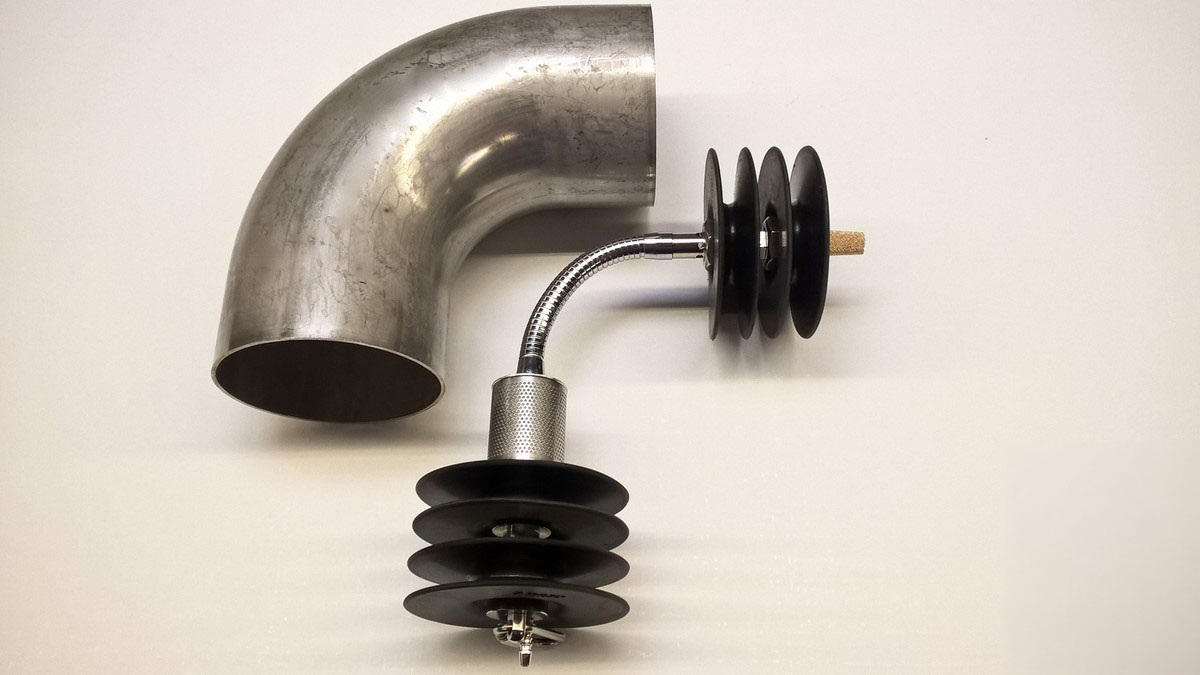

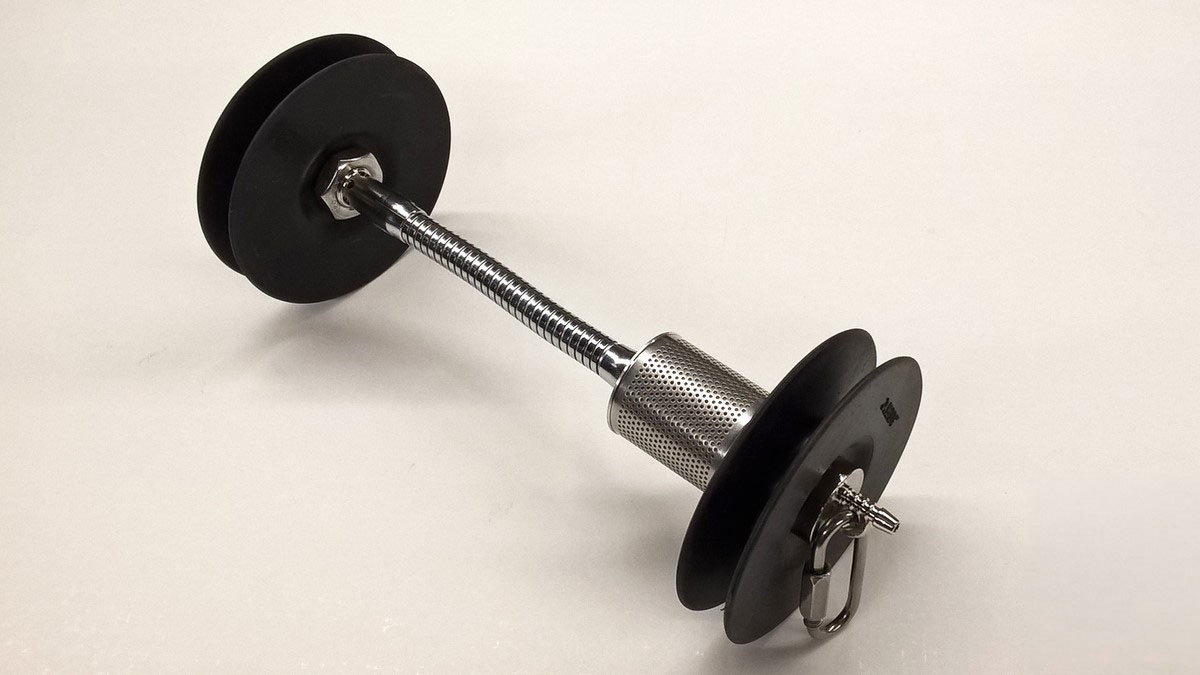

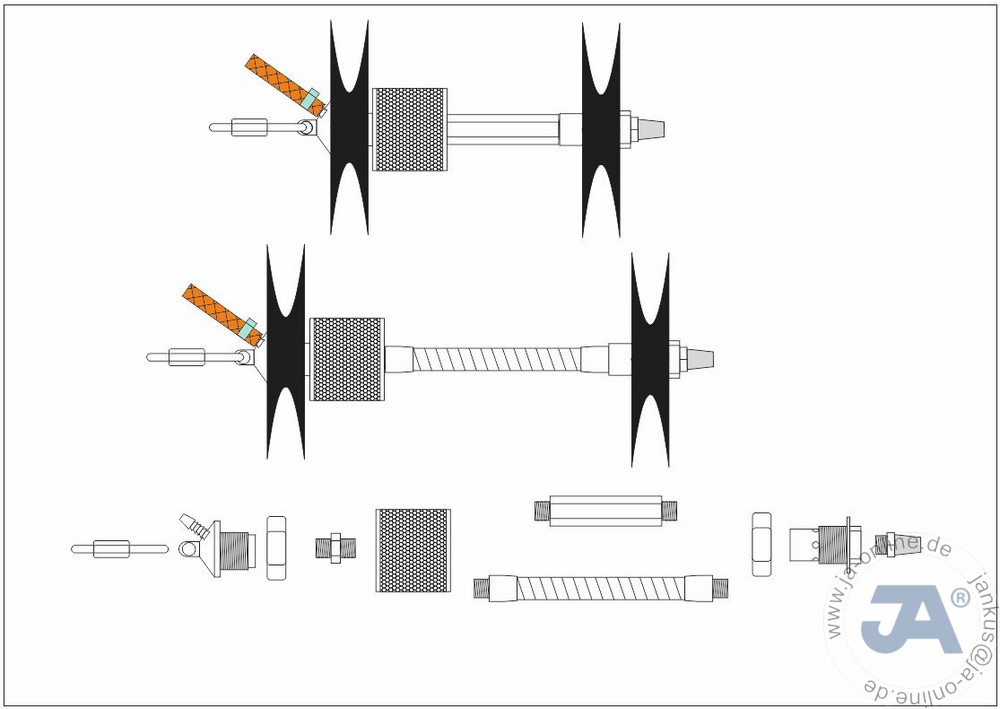

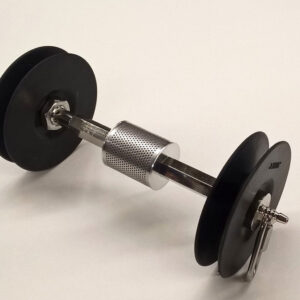

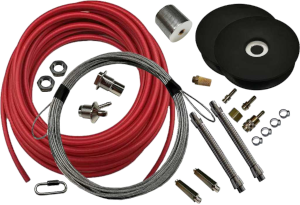

JA modular system (B50330045-B50330420) consists of:
*For welding pipe – pipe & pipe – pipe bend connections.*

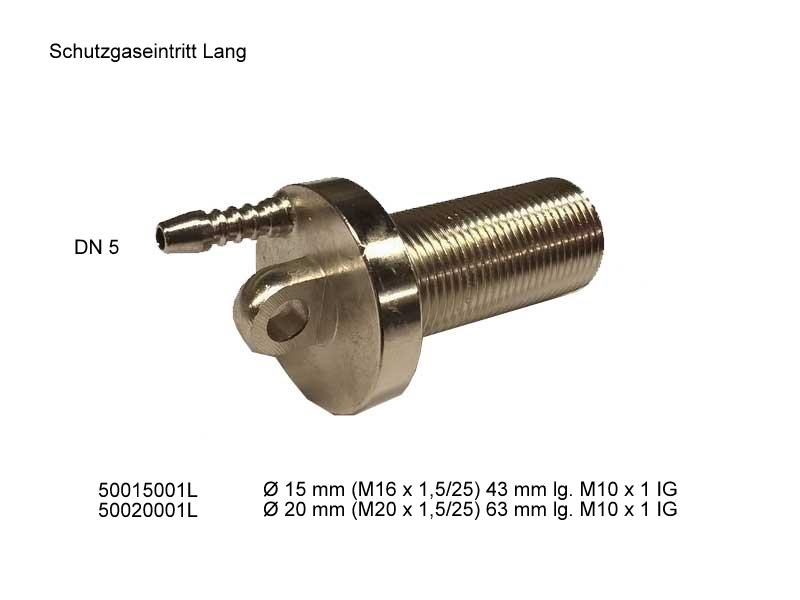

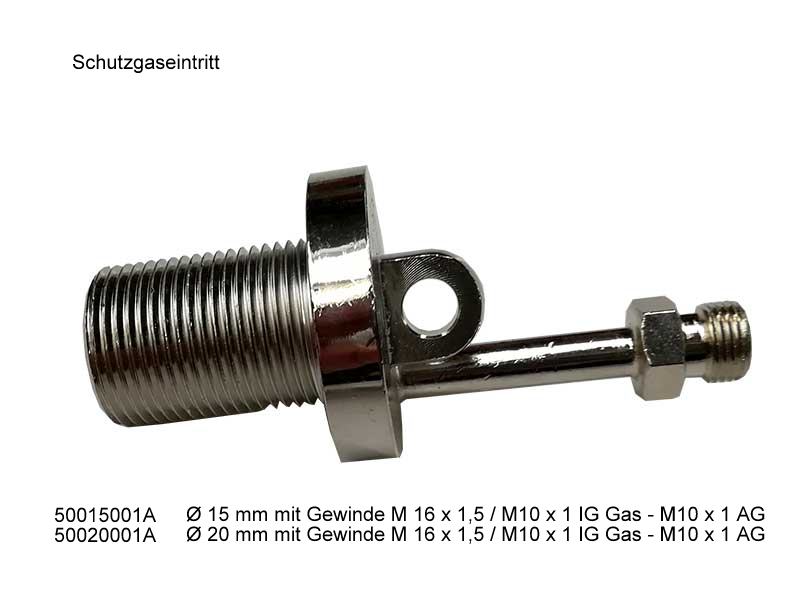

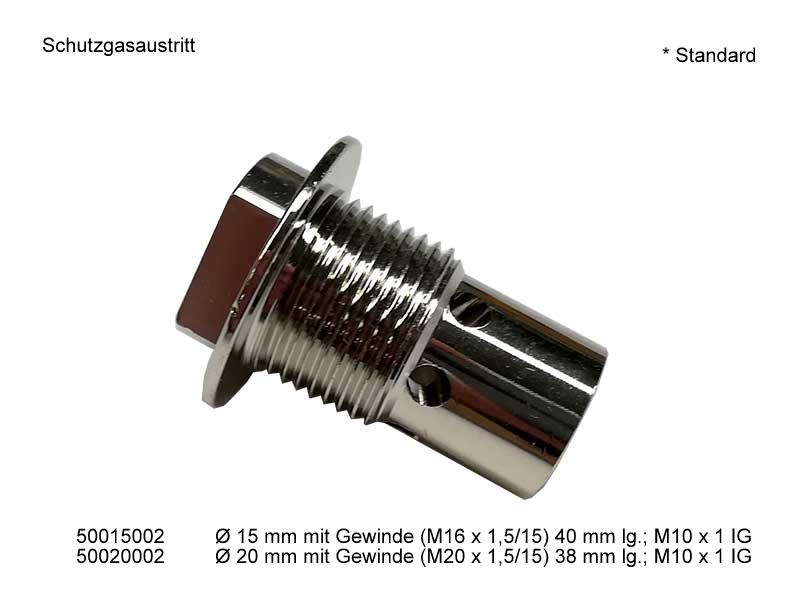

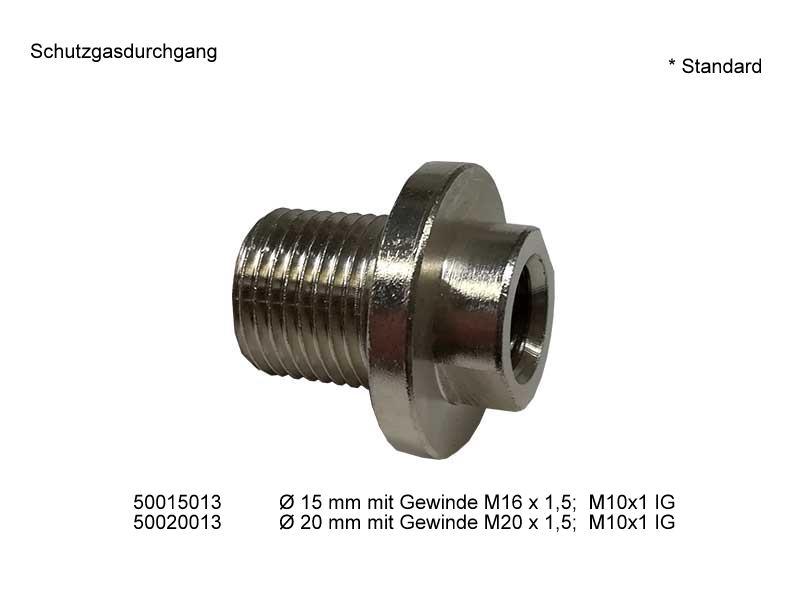

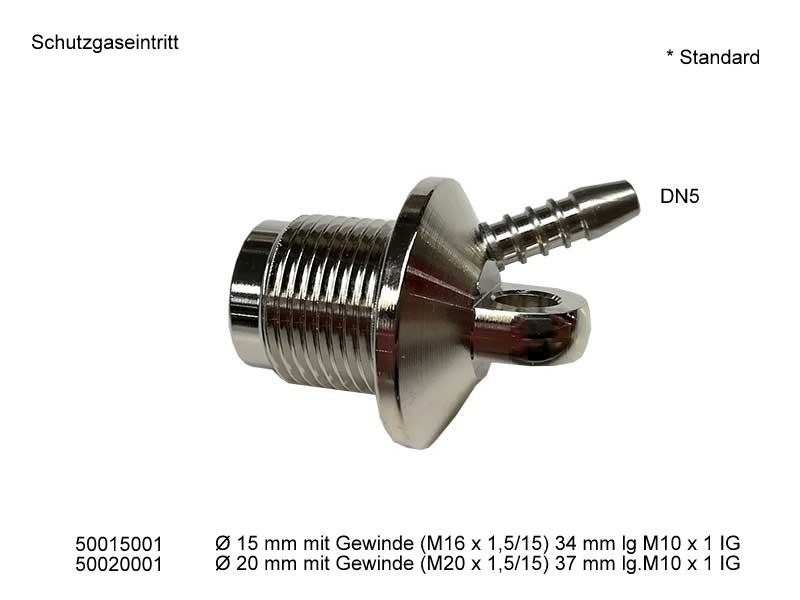

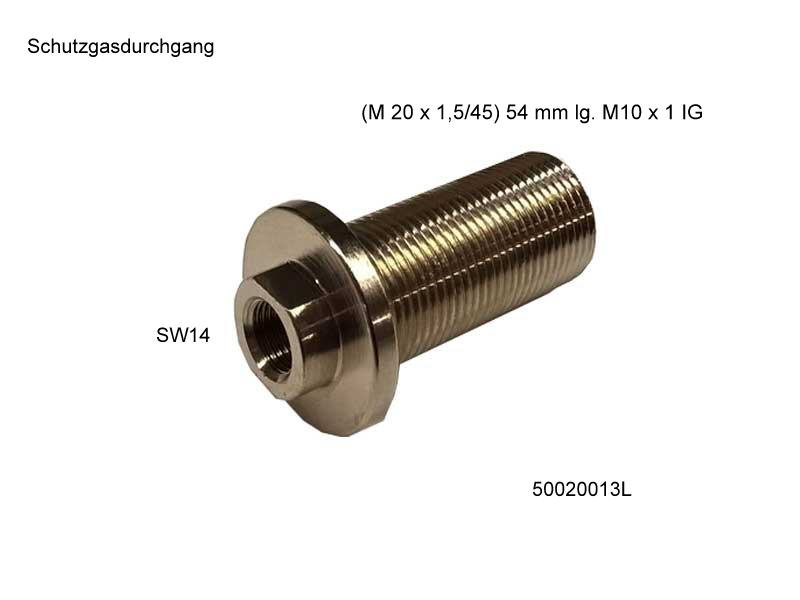

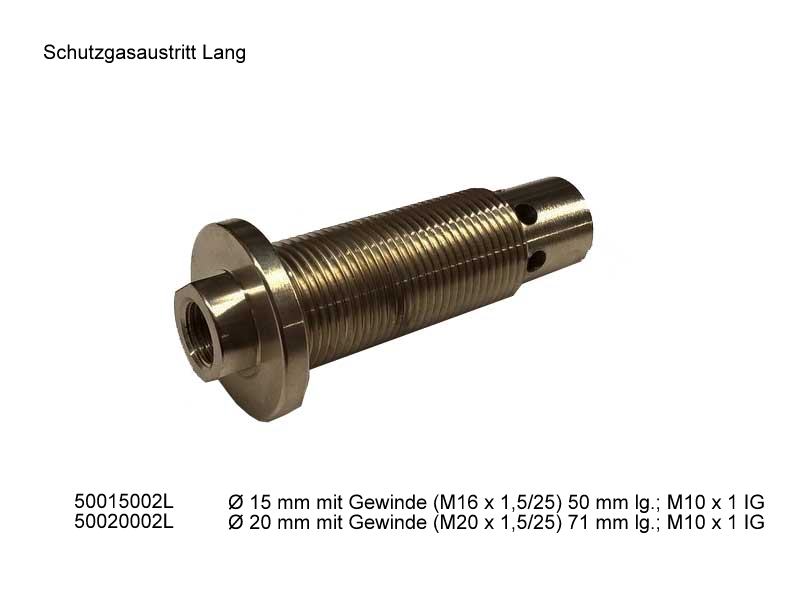

1 piece shielding gas inlet (Ø 15 or Ø 20 mm)
1 piece shielding gas outlet (Ø 15 or Ø 20 mm)

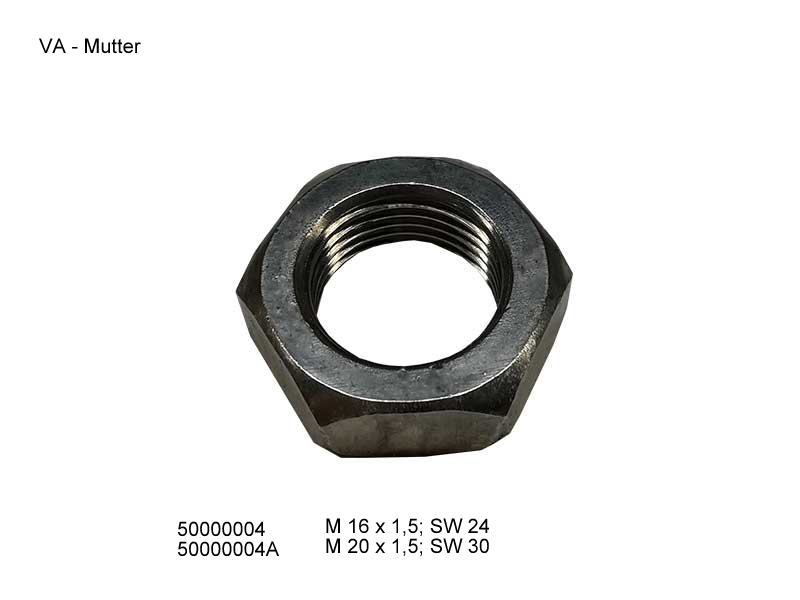

2 pieces VA-SK nut (M16x1 or M20x1)

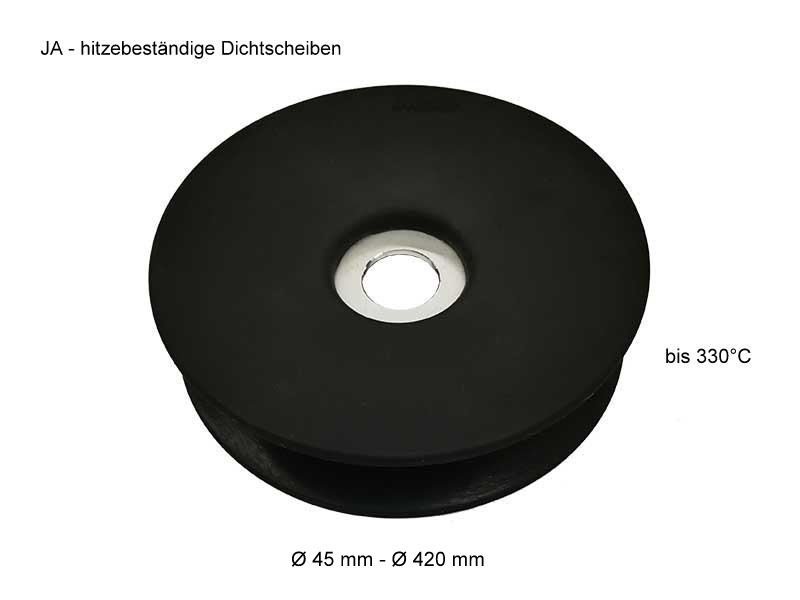

2 pieces heat-resistant sealing disc (Ø45mm – Ø425mm)

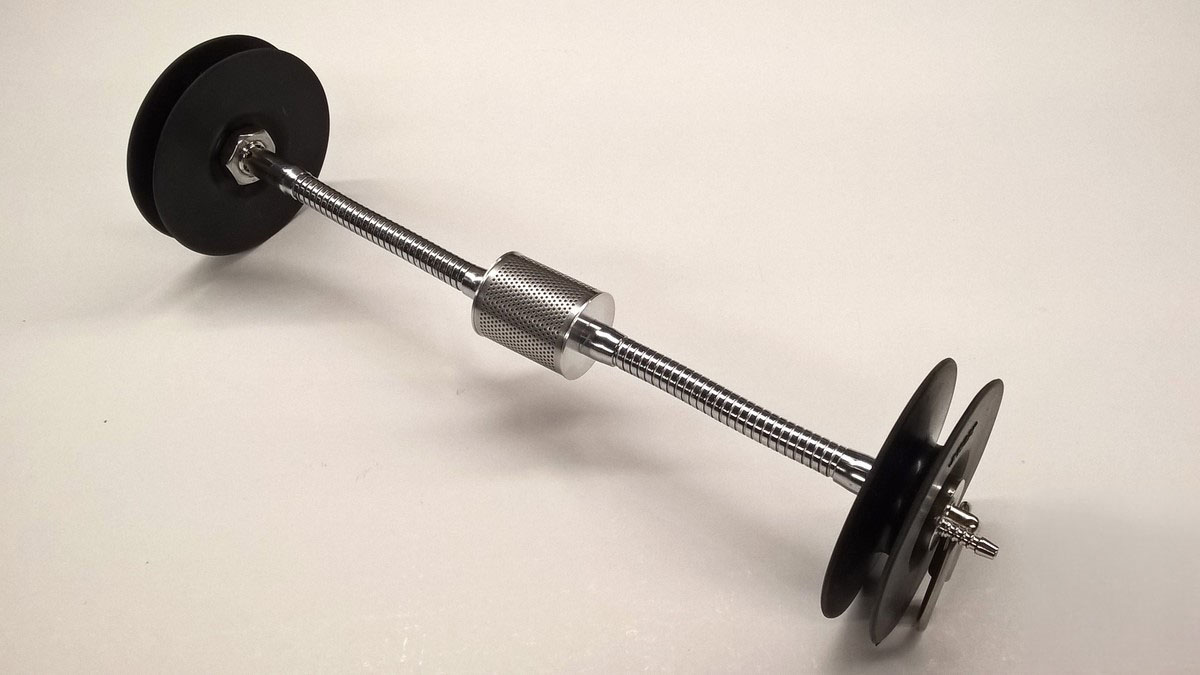

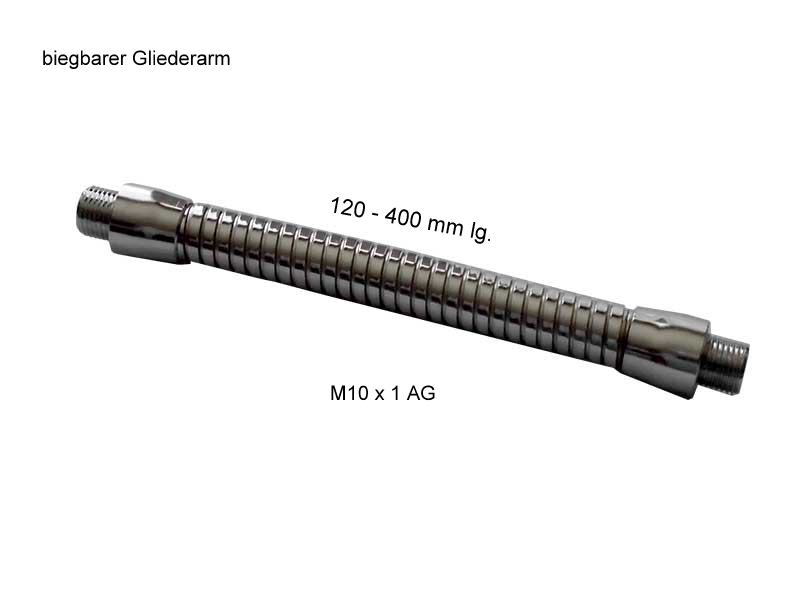

2 pieces link arm (120 mm or 150 mm long)

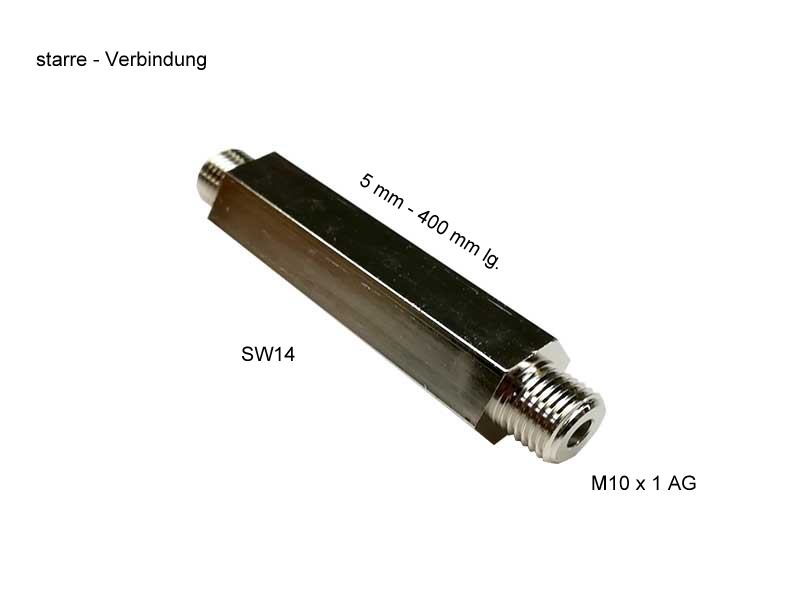

1 piece rigid connection 50 mm long
1 piece rigid connection 60 mm long

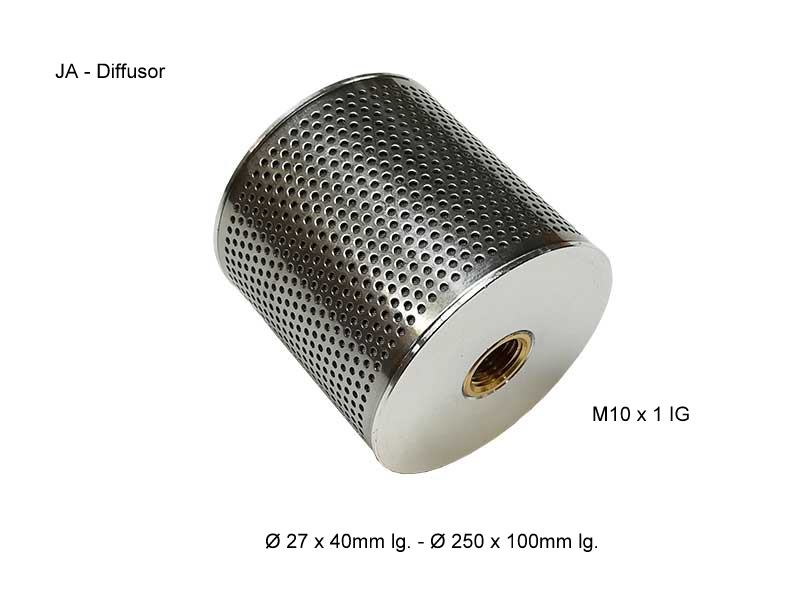

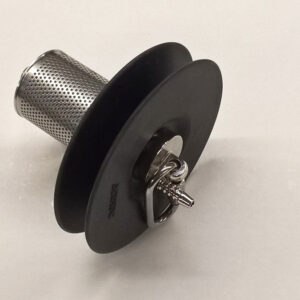

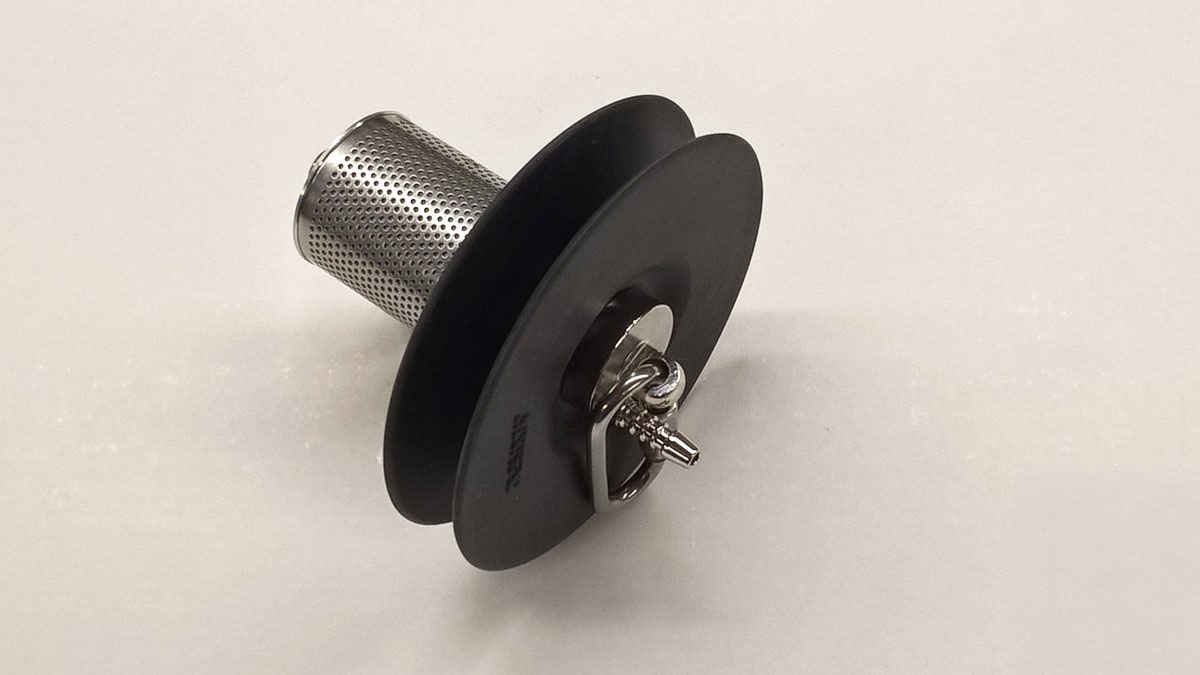

1 piece stainless steel diffuser (depending on system)

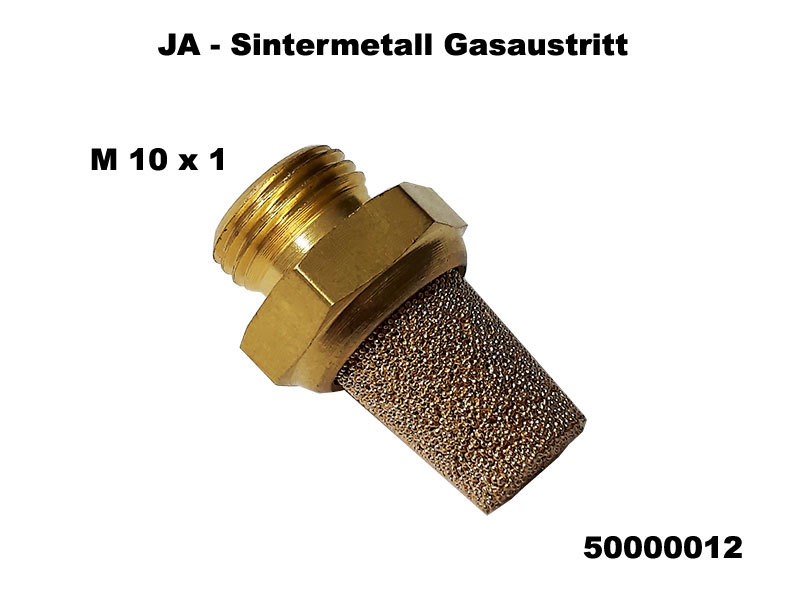

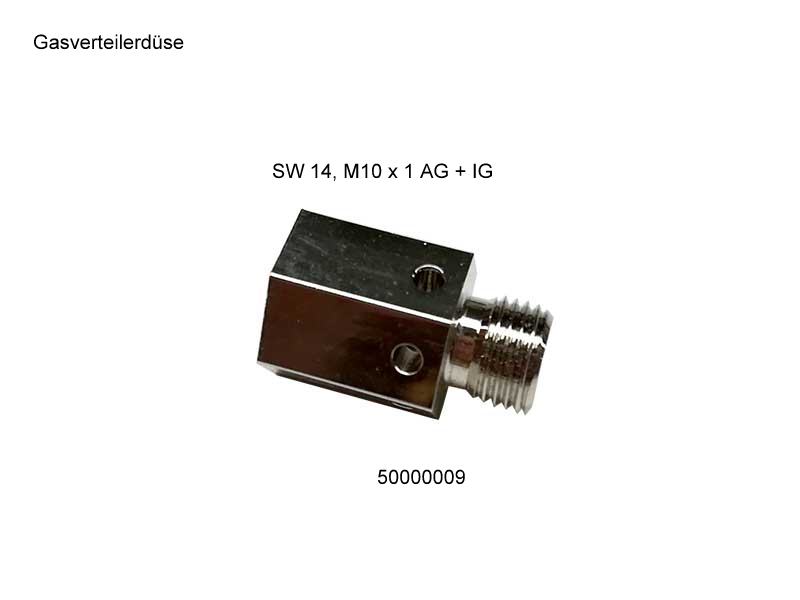

1 piece sintered metal gas outlet M10x1 SW14

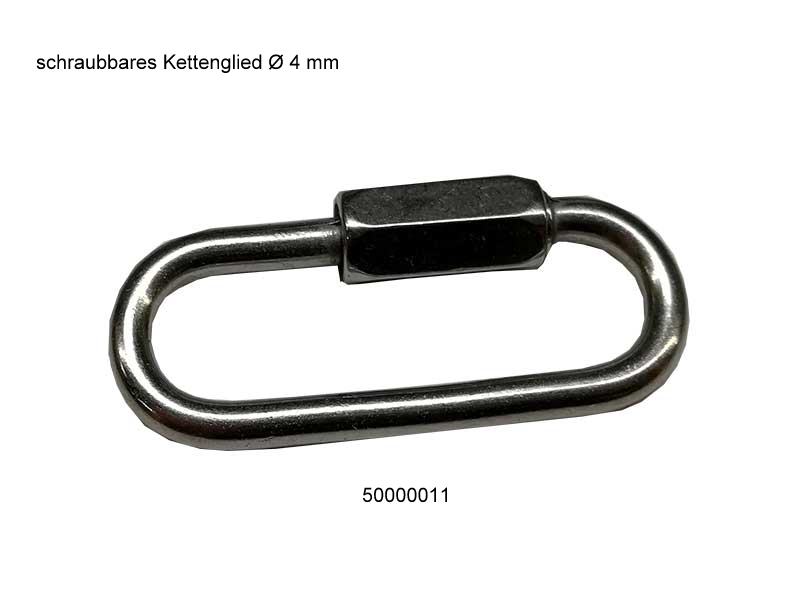

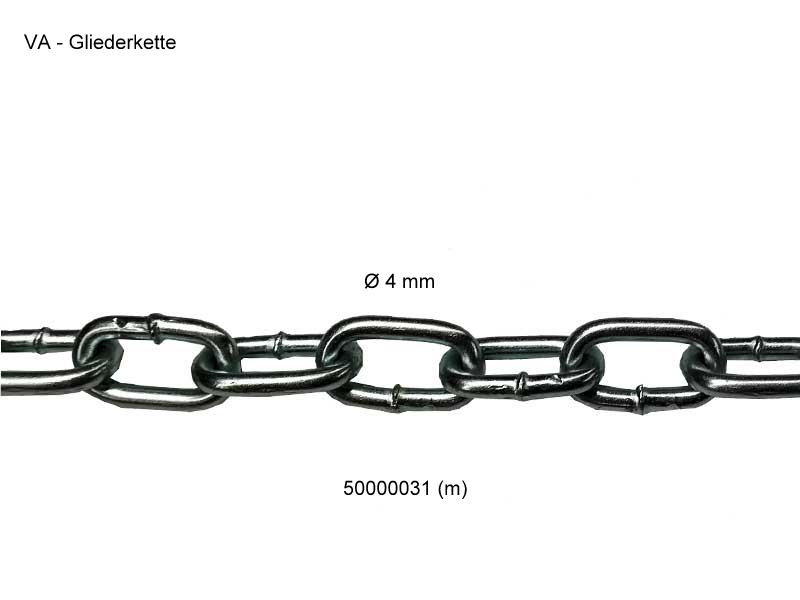

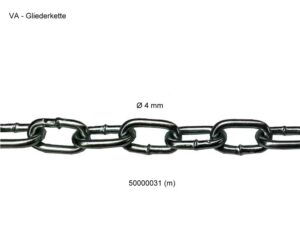

1 piece screwable chain link Ø 4 mm

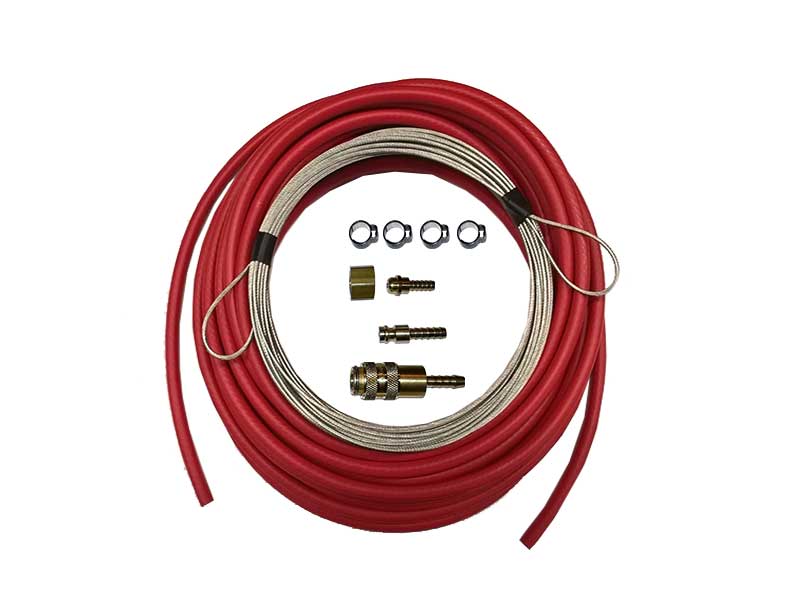

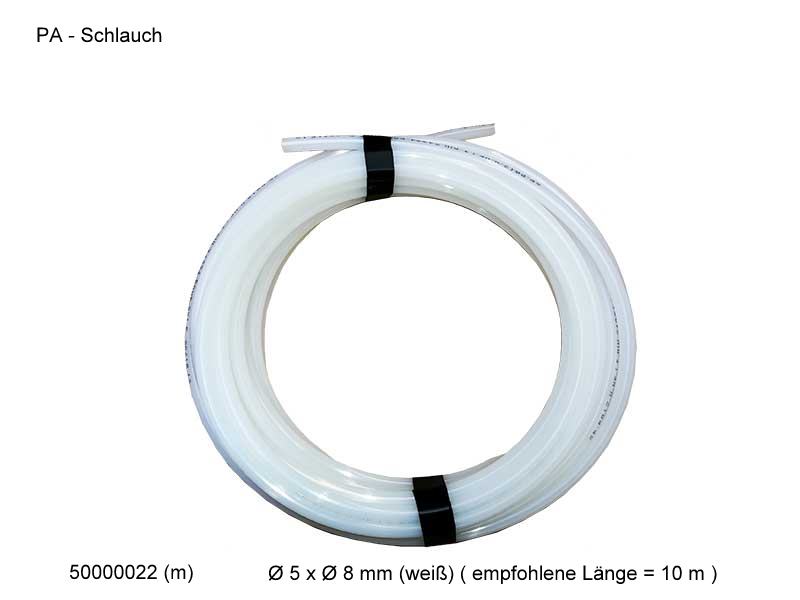

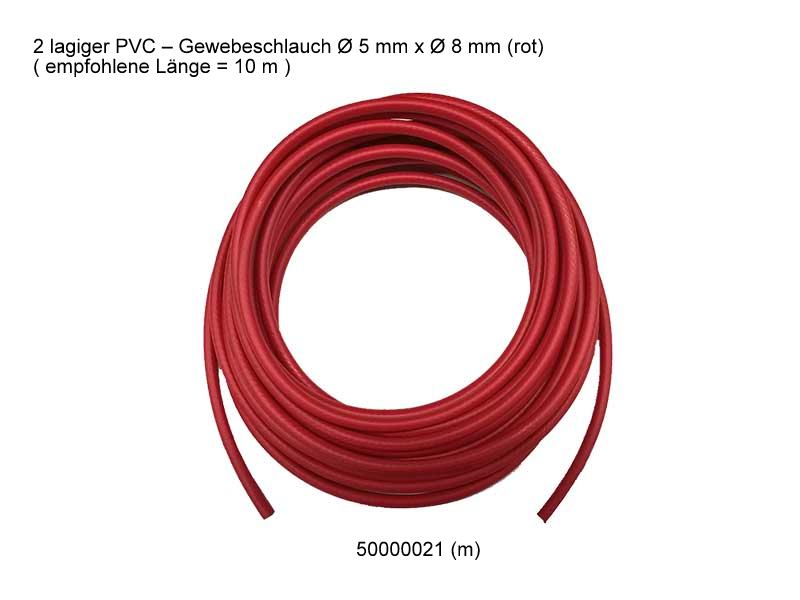

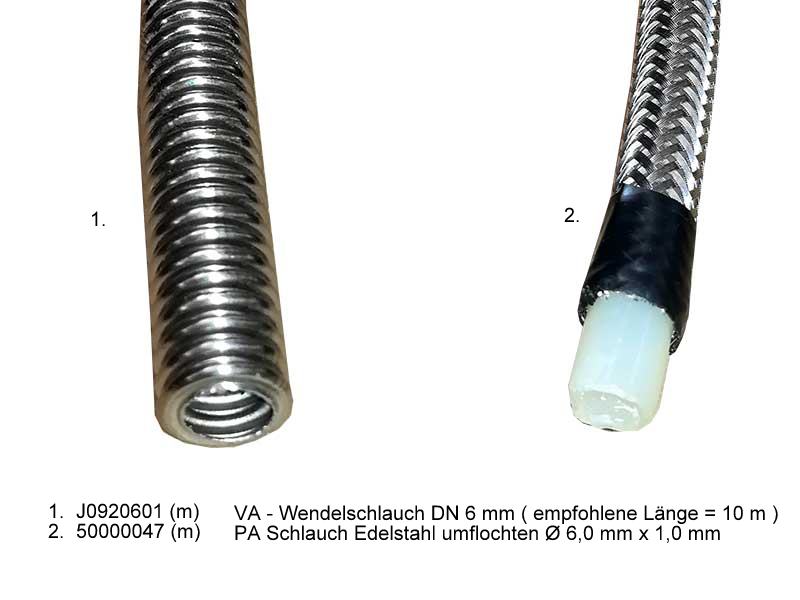

1 piece PVC hose Ø 5 mm / Ø 8 mm x 10 m long.

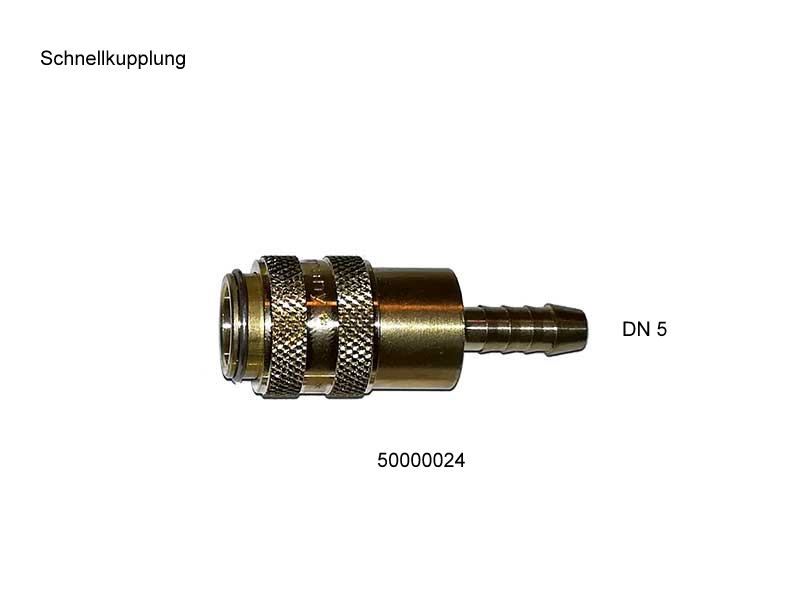

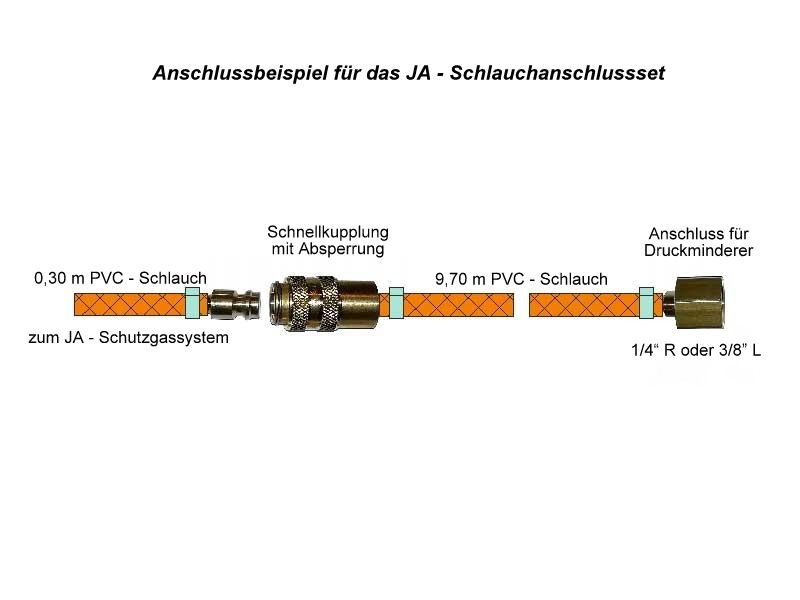

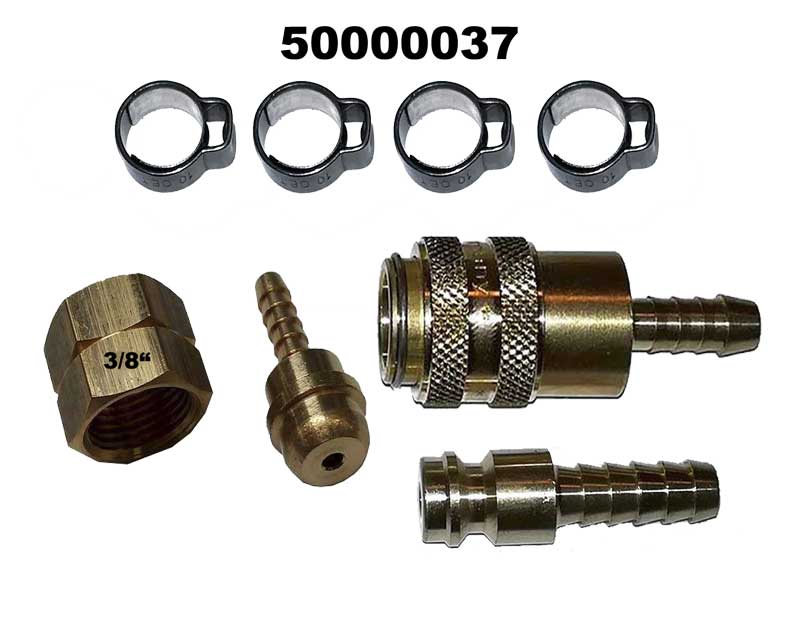

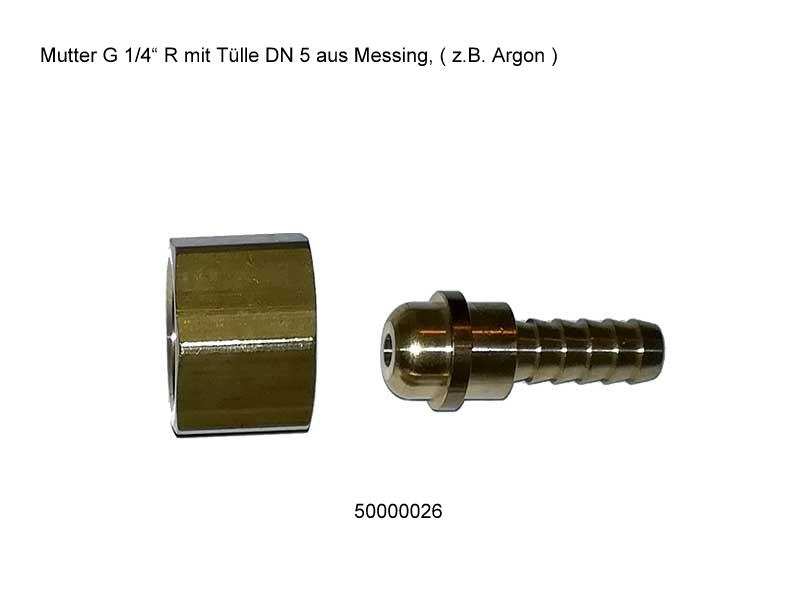

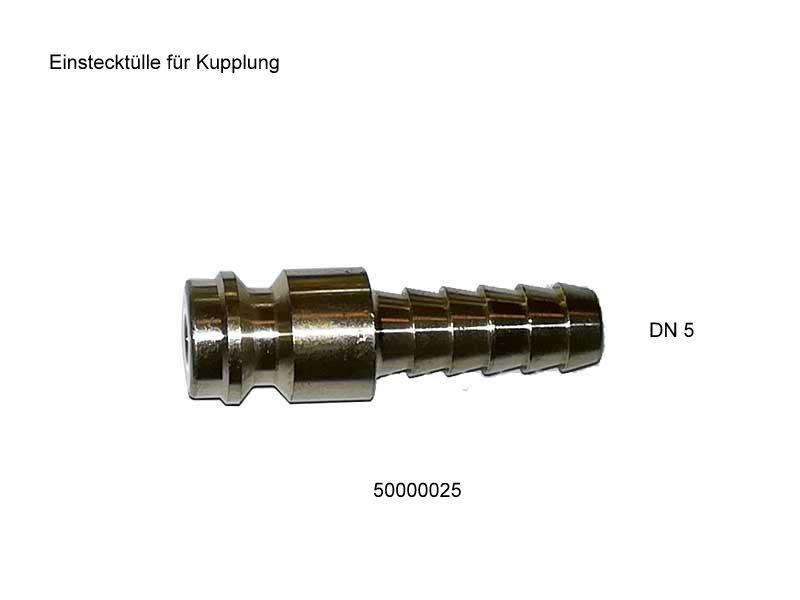

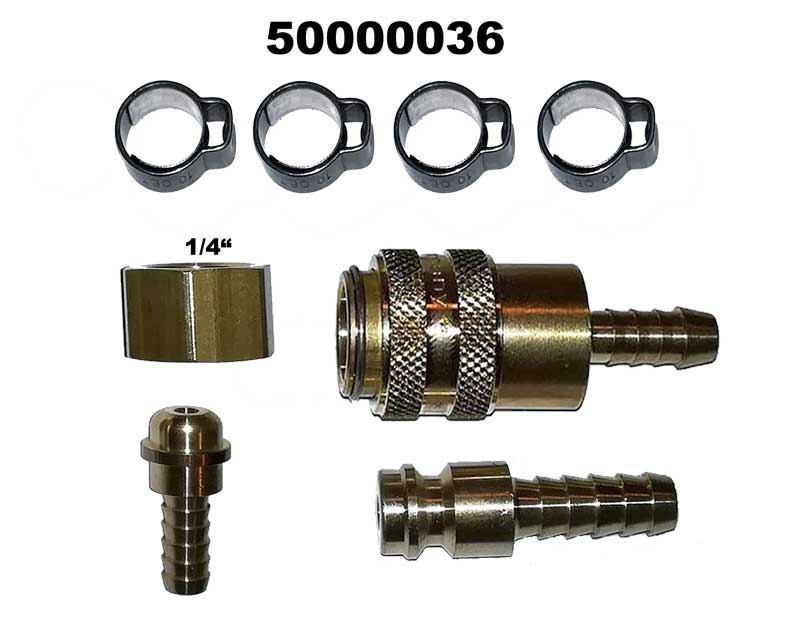

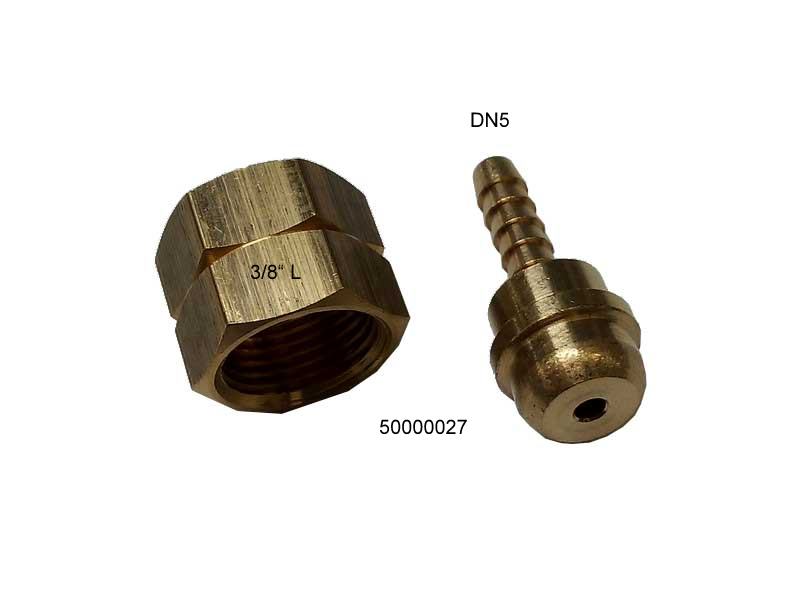

1 piece hose connection set (1/4R or 3/8L)

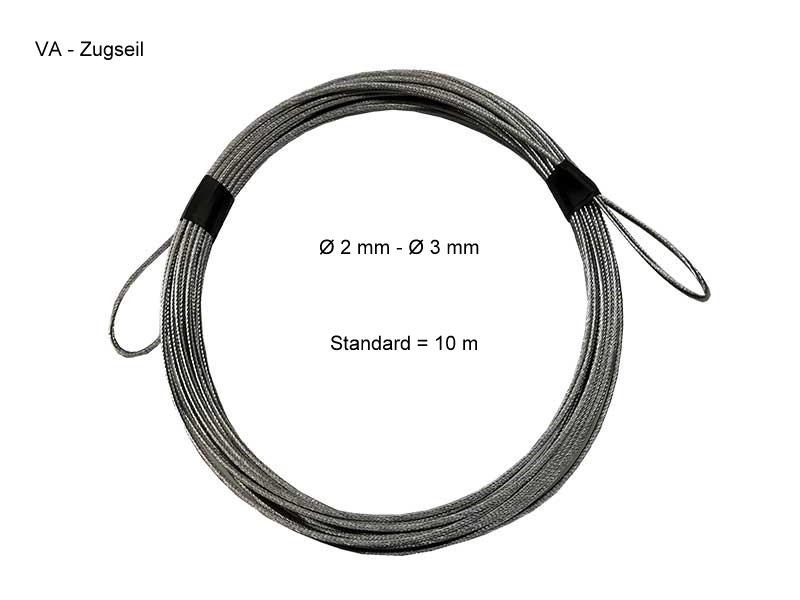

1 piece VA pull rope Ø 2 mm x 10 m long.

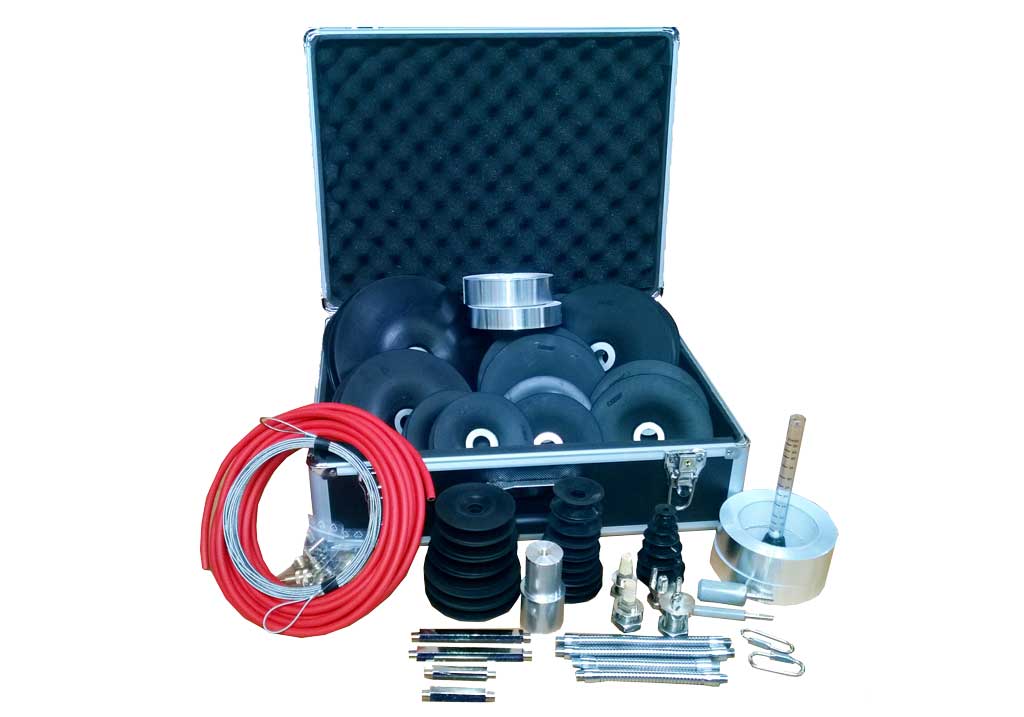

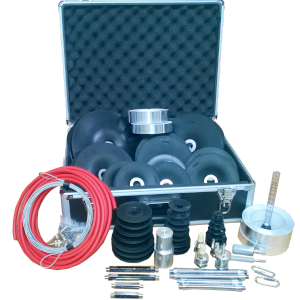

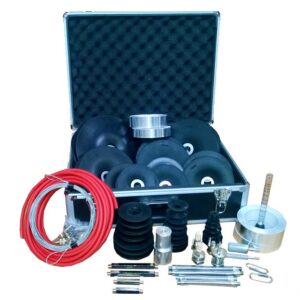

J0200040-1 Case with basic equipment of the JA modular system, for welding pipe-pipe connections, for welding pipe-pipe connections, for DN 15 – DN 100, 1/2″ – 4″ (inch)
J0200040-2 Case with basic equipment of the JA modular system, for welding pipe-pipe connections, for DN 15 – DN 150, 1/2″ – 6″ (inch)
J0200040 Case with basic equipment of the JA modular system, for welding pipe-pipe connections, for DN 15 – DN 200, 1/2″ – 8″ (inch)
J0200040-4 Case with basic equipment of the JA modular system, for welding pipe-pipe connections, for DN 15 – DN 300, 1/2″ – 12″ (inch)
Modular System, individual components
