Tilbehør til rørinnrettingskjeder

for kjedetype 150 C og E

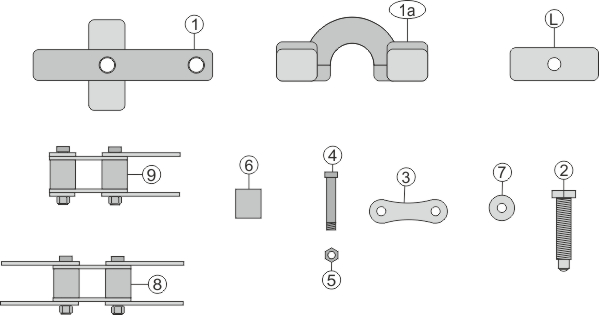

Pos	Description	Dimension	galv. steel	stainl. steel
1	Centering Link 150	50 mm x 99 mm; drilling Ø 5,1 mm thread M8	J0120201	J0120205
2	Hexagon Screw with stainless steel ball bearing	M 8 x 40 mm; SW 13	J0121301	J0121310
3	Chain side bar	43,4 mm / 14,3 mm;drilling Ø 5,1 mm	J0120710	J0120608
4	Chain bolt	32,5 mm x Ø 5,0 mm; M 4; SW 7	J0120712	J0120610
5	Lock nut	M 4; SW 7	J0121302	J0121311
6	Chain pulley	Ø 14,3 mm / Ø 5,1 mm x 16 mm	J0120711	J0120609
7	Distance washer	Ø 14,3 mm / Ø 5,1 mm x 2 mm	J0121303	J0121312
8	Chain extension	103 mm x 32,5 mm x 14,3 mm	J0120401	J0120406
9	Chain end extension	73 mm x 32,5 x 14,3 mm	J0120501	J0120506

for kjedetype 200 C og E + D 200 C og E

Pos	Description	Dimension	galv. steel	stainl. steel
1	Centering Link 200	75 mm x 137,5 mm; drilling Ø 8,1 mm thread M12	J0120202	J0120207
1a	Centering Link D 200	75 mm x 112,0 mm; drilling Ø 8,1 mm thread M12	J0120203	J0120208
L	Centering Block (for Long Link Chain, no picture)	28 mm x 75 mm x 21 mm; drilling Ø 8,1 mm thread M12	J0122301	J0122302
2	Hexagon Screw with stainless steel ball bearing	M 12 x 60 mm; SW 19	J0121304	J0121313
3	Chain side bar	62,5 mm / 21,0 mm; drilling Ø 8,1 mm	J0120714	J0120611
4	Chain bolt	44,5 mm x Ø 8,0 mm; M 6; SW 11	J0120716	J0120613
5	Lock nut	M 6; SW 10	J0121305	J0121314
6	Chain pulley	Ø 21,0 mm / Ø 8,1 mm x 23,0 mm	J0120715	J0120612
7	Distance washer	Ø 21,0 mm / Ø 8,1 mm x 3,0 mm	J0121306	J0121315
8	Chain extension	145 mm x44,5 mm x 21,0 mm	J0120402	J0120407
9	Chain end extension	104 mm x 44,5 mmx 21,0 mm	J0120502	J0120507

for kjedetype 300 C og E + D 300 C og E

Pos	Description	Dimension	galv. steel	stainl. steel
1	Centering Link 300 C	92,0 mm x 166,0 mm; drilling Ø 12,1 mm thread M16	J0120204	---
1	Centering Link 300 E	92,0 mm x 166,0 mm; drilling Ø 10,1 mm thread M16	---	J0120209
1a	Centering Link D 300 C	89,0 mm x 155,0 mm; drilling Ø 12,1 mm thread M16	J0120206	---
1a	Centering Link D 300 E	89,0 mm x 155,0 mm; drilling Ø 10,1 mm thread M16	---	J0120210
L	Centering Block (for Long Link Chain, no picture)	40 mm x 80 mm x 35 mm; M16 ; Ø 10,1 mm	J0122303	J0122304
2	Hexagon Screw with stainless steel ball bearing	M16 x 80 mm; SW 24	J0121307	J0121316
3	Chain side bar	92 mm / 26 mm; drilling Ø 12,1 mm	J0120717	---
3	Chain side bar	92 mm / 26 mm; drilling Ø 10,1 mm; stainless steel	---	J0120614
4	Chain bolt	58,5 mm x 12,0 mm; M 10; SW 13	J0120719	---
4	Chain bolt	58,5 mm x 10,0 mm; M 8; SW 11; stainless steel	---	J0120616
5	Lock nut	M 10; SW 17	J0121308	---
5	Lock nut	M 8; SW 13; stainless steel	---	J0121317
6	Chain pulley	Ø 26 mm / Ø 12,0 mm x 28 mm	J0120718	---
6	Chain pulley	Ø 26 mm / Ø 10,0 mm x 28 mm; stainless steel	---	J0120615
7	Distance washer	Ø 26 mm / Ø 12,1 mm x 5 mm	J0121312	---
7	Distance washer	Ø 26 mm / Ø 10,1 mm x 5 mm; stainless steel	---	J0121318
8	Chain extension	158 mm 58,5 mm x 26 mm	J0120404	---
8	Chain extension	158 mm x 58,5 mm x 26 mm stainless steel	---	J0120409
9	Chain end extension	158 mm x 58,5 mm x 26 mm	J0120504	---
9	Chain end extension	158 mm x 58,5 mm x 26 mm stainless steel	---	J0120509

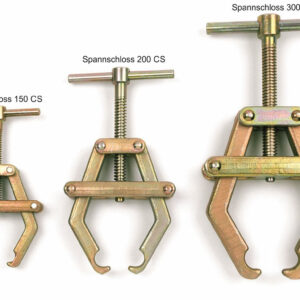

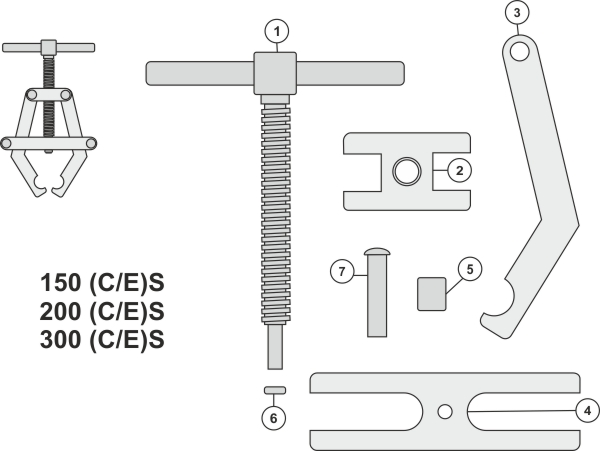

Pos	Description	150CS	150ES	200CS	200ES	300CS	300ES
1	Spindle + ring	J0110701	J0110601	J0110702	J0110602	J0110703	J0110603
2	H-bridge	H1-3C	H1-3E	H2-5C	H2-5E	H5-9C	H5-9E
3	clamping arm	A150C	A150E	A200C	A200E	A300C	A300E
4	bridge	B150C	B150E	B200C	B200E	B300C	B300E
5	caster	J0120705	J0120605	J0120706	J0120606	J0120707	J0120607
6	collar	J0120701	J0120601	J0120702	J0120602	J0120703	J0120603
7	rivet	J0120742	J0120642	J0120743-L	J0120643-L	J0120744	J0120644

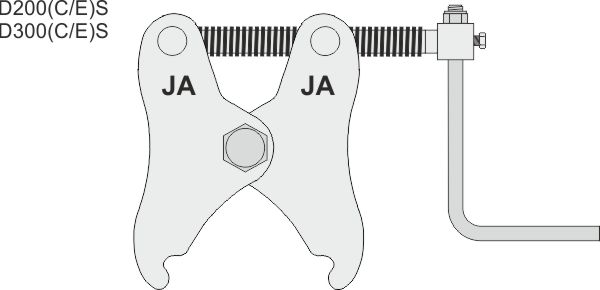

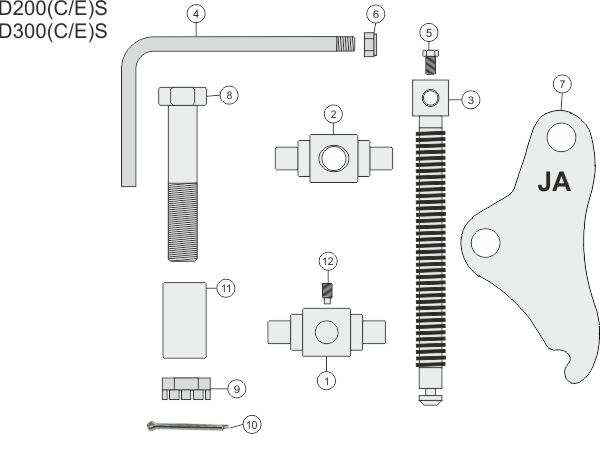

Pos	Description	D200CS	D200ES	D300CS	D300ES
1	Spindle taper	SPA200C	SPA200E	SPA300C	SPA300C
2	Spindle block	SPK200C	SPK200E	SPK300C	SPK300C
3	spindle	SPD200C	SPD200E	SPD300C	SPD300C
4	gag	KN200C	KN200E	KN300C	KN300C
5	locking screw	SK200C	SK200E	SK300C	SK300C
6	nut for gag	MK200C	MK200E	MK300C	MK300C
7	cheek	WA200C	WA200E	WA300C	*WA300E
8	screw	SWA200C	SWA200E	SWA300C	SWA300C
9	castellated nut	MWA200C	MWA200E	MWA300C	MWA300C
10	securing nut	SSP200C	SSP200E	SSP300C	SSP300C
11	Stand Off	DH200C	DH200E	DH300C	DH300C
12	pin screw	SSC200C	SSC200E	SSC300C	SSC300C
